Product Model:

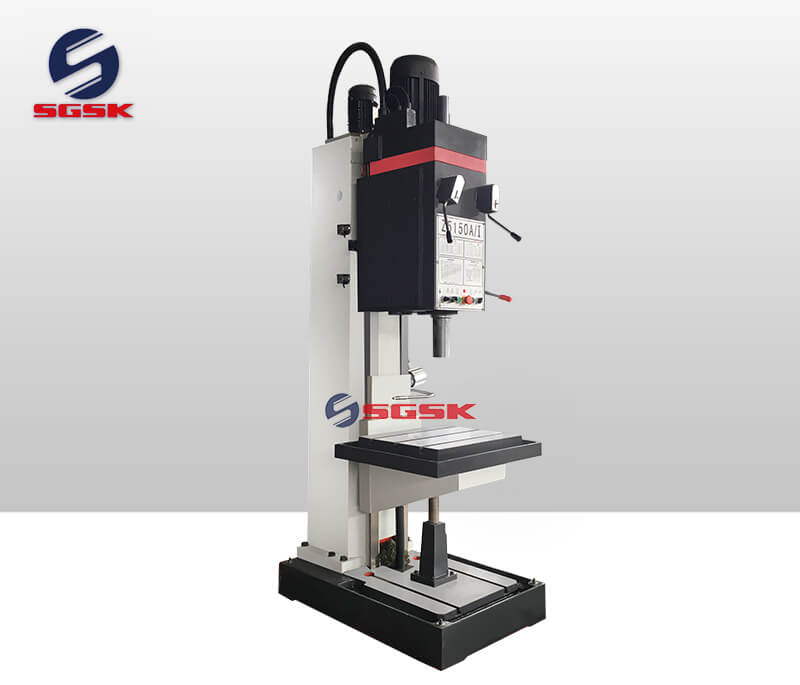

Z5163 Vertical Drilling Machine

Product Main Technical Parameters

Vertical Drilling Machine Description:

1.This vertical drilling machine is universal type machine tool. This machine is suitable for drilling, reaming, milling, drilling, boring, tapping countersunk hole etc.. Automatic reverse feed spindle tapping and fretting, for blind and deep hole is very convenient. Widely used in machinery manufacturing, workshop production and construction processing, etc..

2.This machine tool has the advantages of high efficiency, good rigidity, high precision, low noise, wide speed range, high speed operation, novel appearance, convenient maintenance and so on.


Vertical Drilling Machine Main Technical Specifications:

SpecificationsZ5163
Max drilling diameter63mm
Max feed resistance30000N
Max. spindle allowable torque800N.m
Spindle taperMorse NO.5
Distance from spindle axis to column guideway375mm
Spindle travel250mm
Spindle box travel250mm
Spindle speed40-570r/min  9 steps
The amount of feed(mm/rev)0.1-0.78r/min 6 steps
Working table stroke300mm

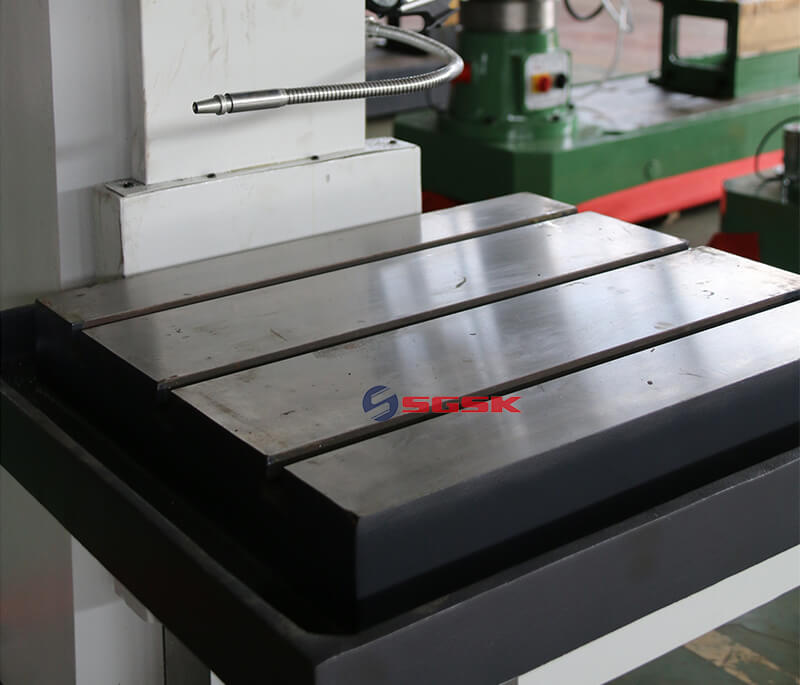

Working table surface size650×550mm
Distance from spindle nose to table surface800mm
Main motor power5.5kw
Cooling pump flow25L/min
Overall dimension1452×965×2787mm
N/W2800kg
