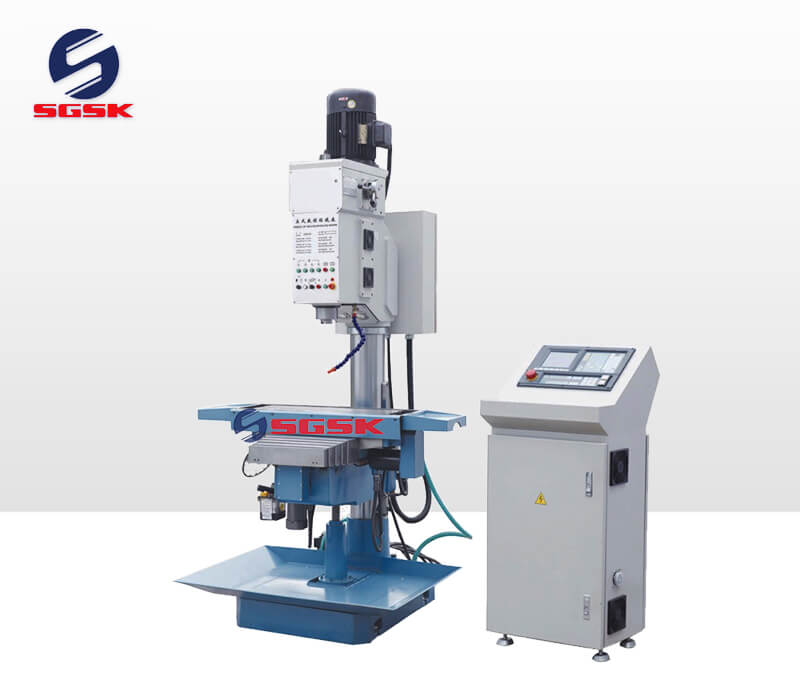

Product Main Technical Parameters
| MODEL | ZXK7540 CNC | ZXK7516 CNC |
| CAPACITY | ||
| Drilling capacity(max.) | Ø40mm | Ø16mm |
| Milling capacity end mill cutter(max.) | Ø25mm | Ø16mm |
| Milling capacity cutter head(max.) | Ø80mm | Ø60mm |
| ACCURACY | ||
| Repeating accuracy | 0.0015mm | 0.0015mm |
| Positioning accuracy | 0.0025mm | 0.0025mm |
| SPINDLE | ||
| Spindle taper | MT4 | |
| Spindle speed | 67-1780rpm | 400-3000rpm |
| Spindle speed steps | 12 | stepless |
| Distance spindle-column | 350mm | 350mm |
| SPINDLE HOLEING FIXTURE | ||
| Z-axis travel | 200mm | 200mm |
| Rate of feed/Torque motor Z-axis | 0-5000mm/min | 0-5000mm/min |
| CROSS TABLE | ||
| Table (L×W) | 800×250mm | 800×250mm |
| Table load | 100kg | 100kg |
| Z-axis travel of table | 360mm | 360mm |
| Y-axis travel | 290mm | 290mm |
| Rate of feed/Torque motor Y-axis | 0-5000mm/min | 0-5000mm/min |
| X-axis travel | 500mm | 500mm |
| Rate of feed/Torque motor X-axis | 0-5000mm/min | 0-5000mm/min |
| T-slot | 14mm/50mm/3 | 14mm/50mm/3 |
| Distance spindle-cross table(max.) | 445mm | 445 |
| ELECTRIC SUPPLY | ||
| Motor | 2.2/2.8kW | 4KW |
| Motor coolant pump | 40W | 40W |
| DIMENSION AND WEIGHT | ||
| Overall dimension (L×W×H) | 1180*1100*2400mm | 1180*1100*2400mm |
| Packing size (L×W×H) | 1390*1270*2060mm | 1370*1480*2185mm |
| Net weight/Gross weight | 1000kg | 1000kg |
