Product Model:

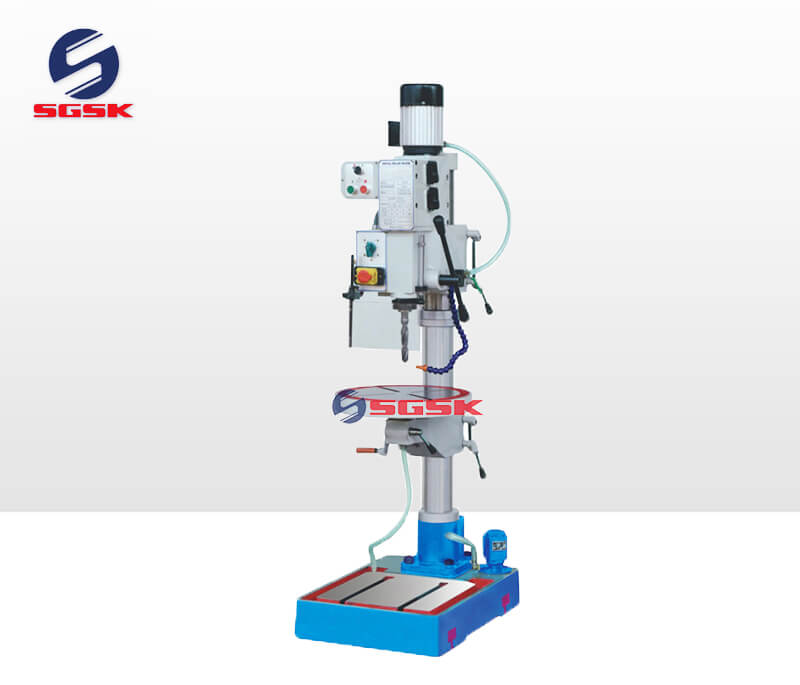

Z5025 Z5025B Vertical Drilling Machine

Product Main Technical Parameters

Vertical Drilling Machine Main Performance Characteristics

1.Change speed with gears and operate easily ,

2.High spindle speed and wide speed range,

3.Charcteristic auto tool releasing device guarantees it is very easy to change tool ,

4.Equipped with coolant system and work lamp.


Vertical Drilling Machine Application:

Ideal choice for single piece and small batch production mass, production for drilling ,counter boring, tapping screws, spot facing machining, etc.


Vertical Drilling Machine Main Technical Specifications:

SpecificationsUnitsZ5025Z5025B
Max. Drilling capacitymm2525
Diameter of columnmm100100
Spindle travelmm150150
Distance spindle axis to column generating linemm225225
Max. spindle nose to tablemm630/
Max. spindle nose to basemm1670550
Spindle taper
MT3MT3
Spindle speeds ranger/min100-2900100-2900
Spindle speeds series
88
Spindle feedsmm/r0.07 0.15 0.26 0.400.07 0.15 0.26 0.40
Dimension of worktable surfacemm440/
Table travelmm560560
Dimension of base tablemm690x500690x500
Overall heightmm19001390
Spindle  motor powerK w1.1/0.751.1/0.75
Coolant motorw4040
G.W/N.Wkg300/290235/225
Packing dimensioncm70x56x18278x52x117
