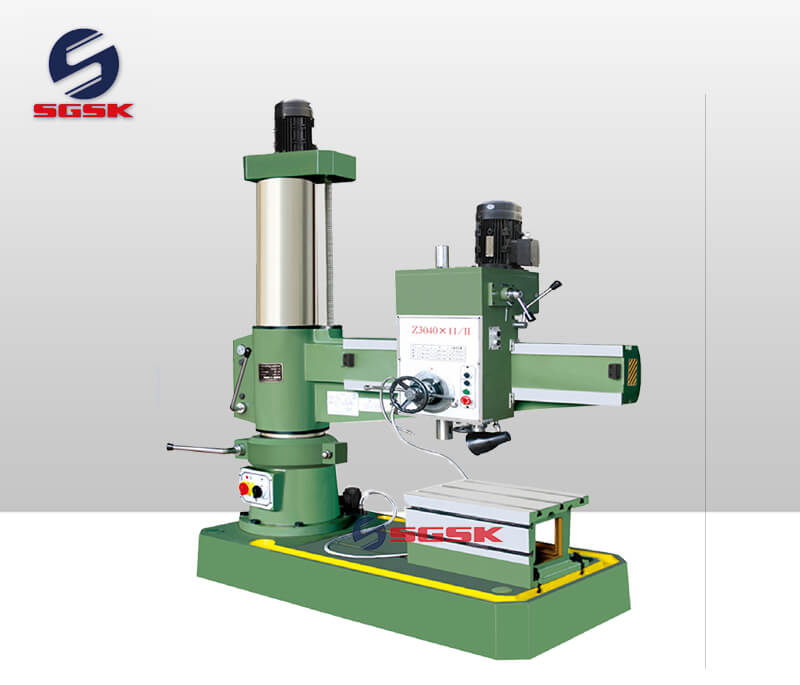

Product Main Technical Parameters
Radial Drilling Machine Main Performance Characteristics：
Mechanical transmission
Mechanical clamping
Mechanical speed
Automatic take-off and landing
Automatic feed
Radial Drilling Machine Main Technical Parameters:
| SPECIFICATIONS | Z3040×11/II |
| Max.drilling dia (mm) | cast iron 40 / Steel32 |
| Distance from spindle nose to table surface (mm) | 220-1180 |
| Distance from spindle axis to column surface (mm) | 340-1150 |
| Spindle travel(mm) | 270 |
| Spindle taper(MT) | 4 |
| Spindle speeds range (r.p.m) | 40-1250 |
| Spindle speed steps | 6 |
| Spindle feeding range (mm/r) | 0.10-0.25 |
| Spindle feeding steps | 3 |
| Rocker rotary angle ° | ±90° |
| Main motor power (kw) | 2.2 |
| Movements motor power (kw) | 0.75 |
| Weight (kg) | 1600 |
| Overall dimensions (mm) | 1550×705×2200 |
