Product Main Technical Parameters
Radial Drilling Machine Performance Characteristics:
Strengthening spindle
Automatic tools retraction
Lowest speed 40rpm
Radial Drilling Machine Main Technical Specifications:
| Specifications | Z3040×11C |
| Max.drilling diameter(mm) | 40 |
| Distance from spindle nose to table surface (mm) | 180~1110 |
| Distance from spindle axis to column surface (mm) | 350~1060 |
| Spindle travel(mm) | 250 |
| Spindle taper | MT4 |

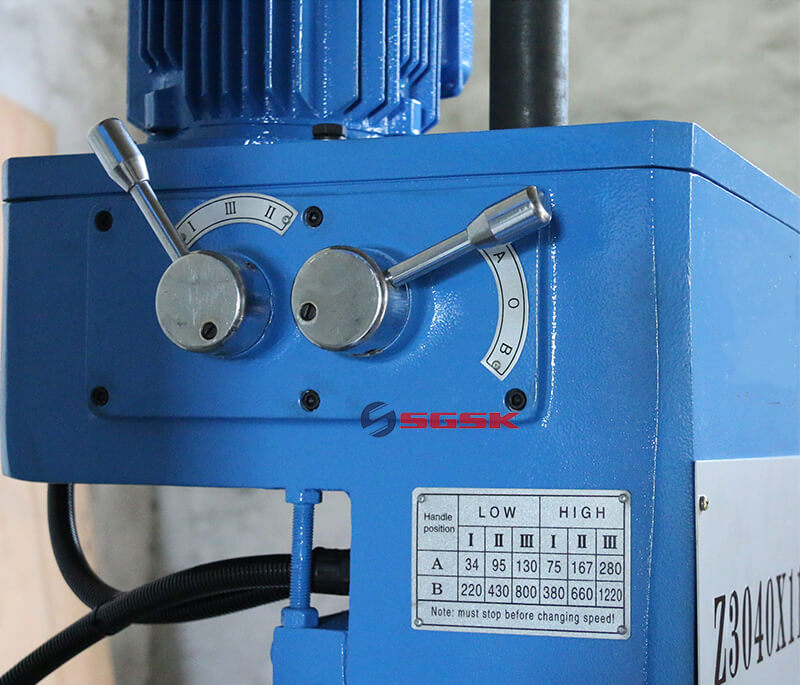

| Spindle speed range (rpm ) | 40-1250 |
| Spindle speed steps | 6 |
| Spindle feeding range(mm/r) | 0.10-0.25 |
| Spindle feeding steps | 3 |
| Main motor power (kw) | 3 |
| Movements motor power (kw) | 0.75 |
| N/W(Kg) | 1700 |
| Overall dimensions(mm) | 1500*705*2200 |
