Product Main Technical Parameters
Radial Drilling Machine Main Performance Characteristics：
Mechanical transmission
Mechanical clamping
Mechanical speed
Automatic retraction

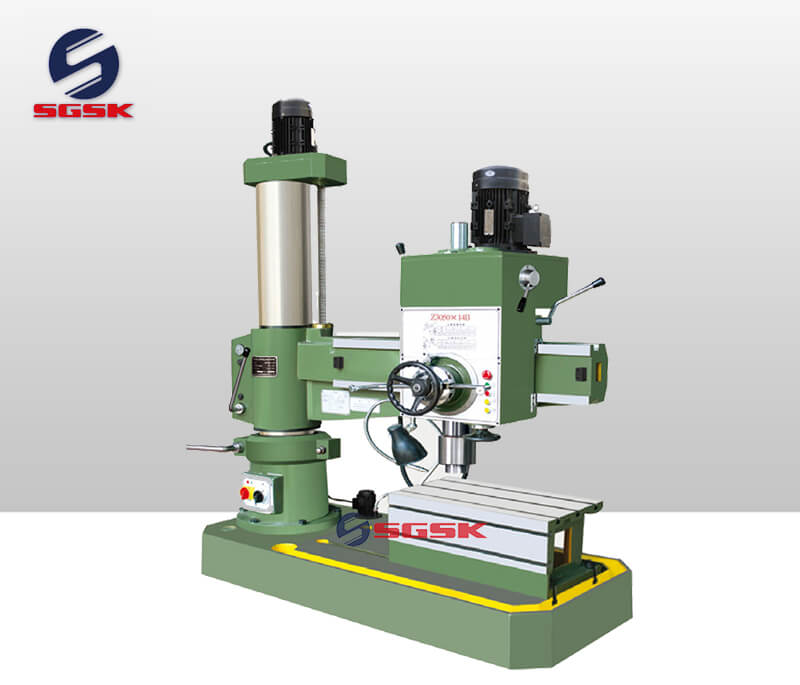

Radial Drilling Machine Main Technical Parameters:
| Specification | Z3050x14B |
| Max. drilling diameter (mm) | 50 |
| Distance between spindle nose and working surface of base plate 9mm) | 300-1250 |
| Distance between spindle axis and column (mm) | 330-1310 |
| Spindle travel (mm) | 250 |
| Spindle taper(morse) | 5 |
| Spindle speeds range(r.p.m) | 30、45、63、90、125、175、250、350、500、700、1000、1400 |
| Number of spindle speeds | 12 |
| Spindle feeds range (r.p.m) | 0.054、0.109、0.148、0.215、0.298、0.432、0.589、0.866、1.723 |
| Steps of spindle feeds | 9 |
| Radial rotation Angle(°) | ±90° |
| main motor (kw) | 4 |
| Maximum resistance to the spindle(N) | 16000 |
| movement motor power (kw) | 1.5 |
| weight (kg) | 2000 |
| overall dimensions (mm) | 1950*810*2450 |
