Product Model:

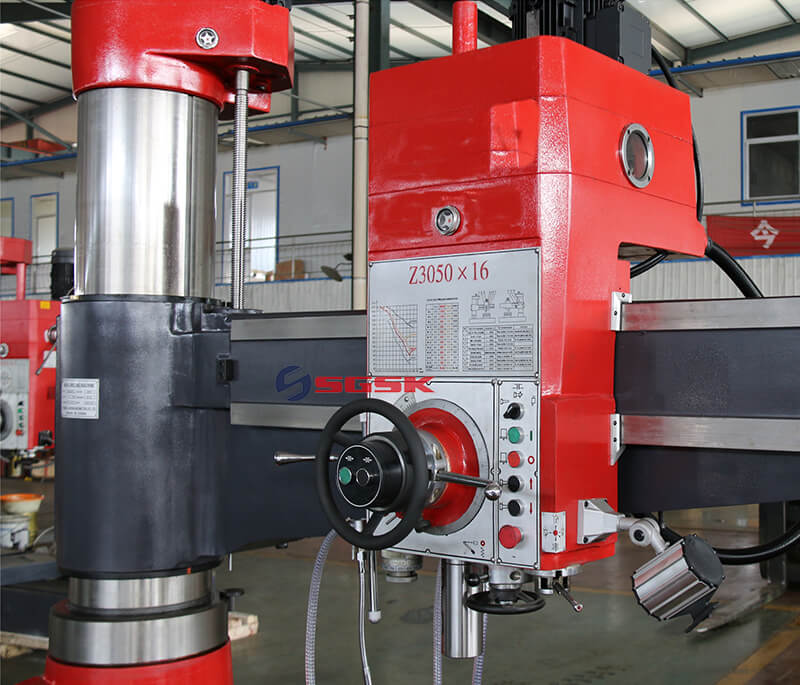

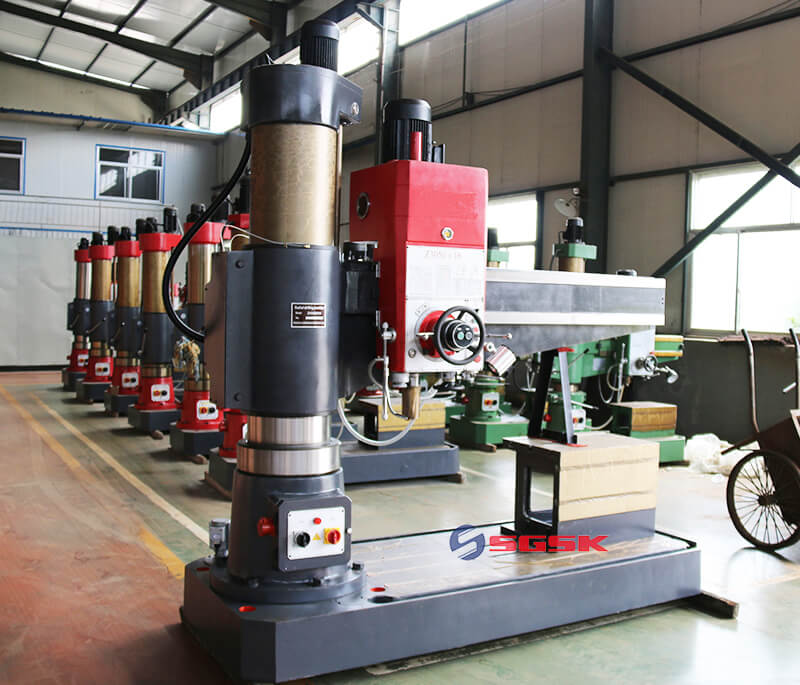

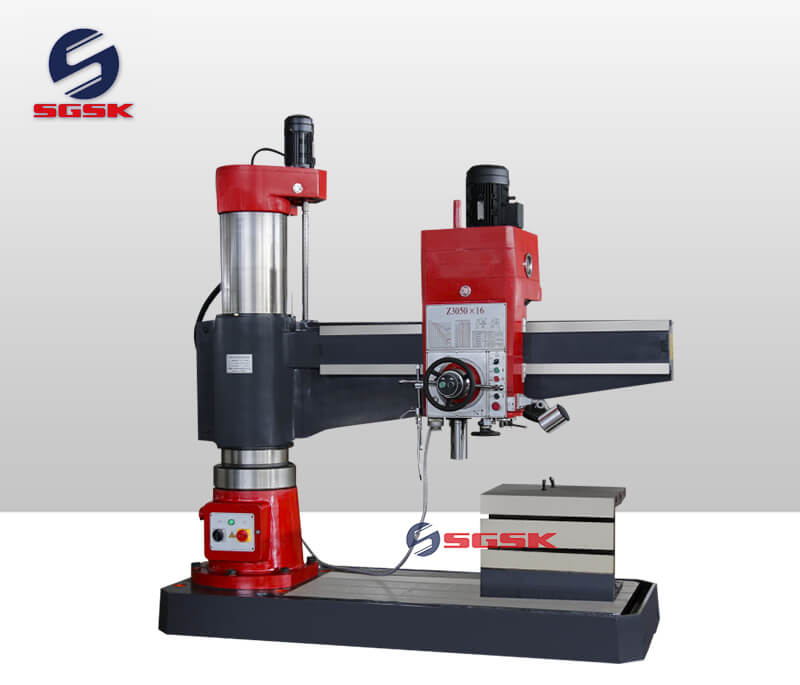

Z3050x16 Hydraulic Radial Drilling Machine

Product Main Technical Parameters

Hydraulic Radial Drilling Machine Main Characteristics

Hydraulic transmission
Hydraulic clamping

Hydraulic pre-selection
electricity machinery double insurance


Hydraulic Radial Drilling Machine Main Parameters:

SPECIFICATIONSZ3050×16
Max.drilling dia (mm)50
Distance from spindle nose to table surface(mm)320-1240
Distance between spindle axis and column surface (mm)350-1640
Spindle travel (mm)330
Spindle cone(MT)5
Spindle speeds range (r.p.m)25-2000
Spindle speed step16
Spindle feeding range(r.p.m)0.04-3.2
Spindle feeding step16
Rocker rotary angle (°)±90°
Main motor power  (kw)4
Movements motor power (kw)1.5
Weight (kg)3500
Overall dimensions (mm)2500×1060×2800
