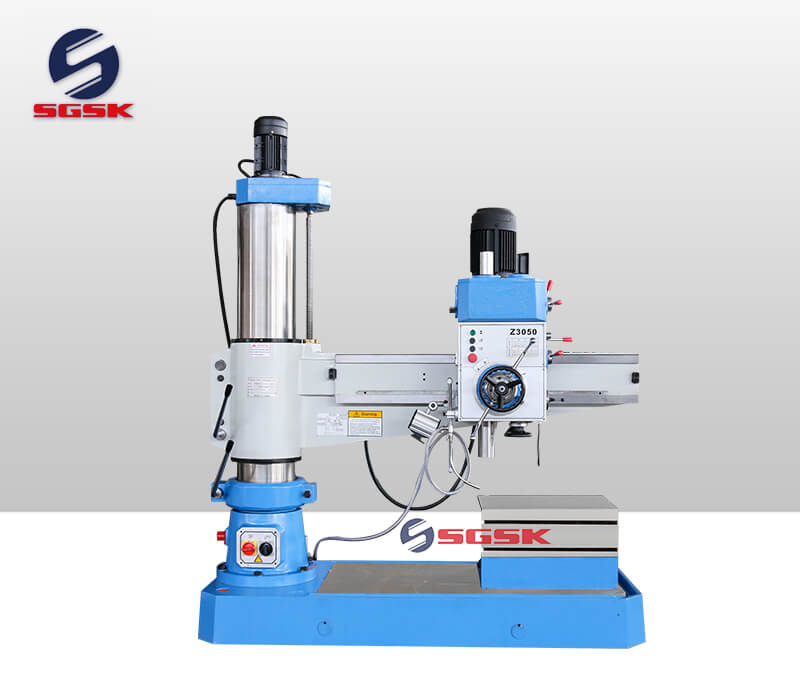

Product Main Technical Parameters
Radial Drilling Machine Main Performance Characteristics：
Mechanical transmission
Mechanical clamping
Mechanical speed
Automatic take-off and landing
Automatic feed
Radial Drilling Machine Main Technical Parameters:
| Specification | Z3050X11 |
| Max.drilling dia(mm) | 50 |
| Distance from spindle nose to table surface(mm) | 260-1150 |
| Distance between spindle axis and column surface(mm) | 360-1050 |
| Spindle travel (mm) | 210 |
| Spindle Cone | 5 |
| Spinde speeds range(r.p.m) | 78, 135,240,350,590,1100 |
| Spinde speed step | 6 |
| Spinde feeding range(r.p.m) | 0.10-0.56 |
| Spinde feeding step | 6 |
| Rocker rotary angle | ±90° |
| Main motor power(KW) | 4 |
| Movements motor power(KW) | 1.5 |
| N.W/G.W(Kg) | 1700 |
| Overall dimensions(mm) | 1550×705×2250 |
