Product Main Technical Parameters
| Specification | Unit | VTC1000 |
| Max. swing diameter | Mm | 1100 |
| Max. turning diameter | Mm | 850(over bed gap)1000(disk class) |
| Max.travel of vertical tool post(vertical) | mm | 750 |
| Max.travel of vertical tool post(horizontal) | mm | -50-600 |
| Distance between tool post and the surface of chuck | mm | 100-850 |
| Spindle nose | - | A2-11 |
| spindle bearing configuration | - | NN3036 180X280X74 Double row cylindrical roller bearing |
| NN3030 150X225X56 Double row cylindrical roller bearing | ||
| 234436 180X280X120 Two-way thrust angular contact ball bearing | ||
| Spindle speed range | r/min | 50-800 |
| Max.torque of spindle | NM | 1050 |
| Main motor power | KW | 22/30(Rated speed 600, rated torque 350NM) |
| X axis rapid traverse | M/min | 15 |
| Z axis rapid traverse | M/min | 12 |
| Cutting feed speed | Mm/min | 0.1-5000 |
| X axis motor power and torque | Kw/Nm | 2.5/20 |
| Z axis motor power and torque | Kw/Nm | 3/27 |

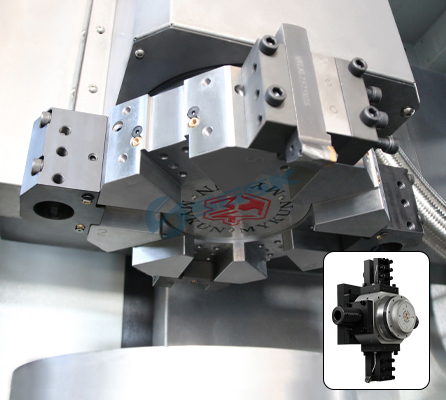

| Turret/tool post | - | 8 position hydraulic turret |
| Tool section size | mm | 32x32 |

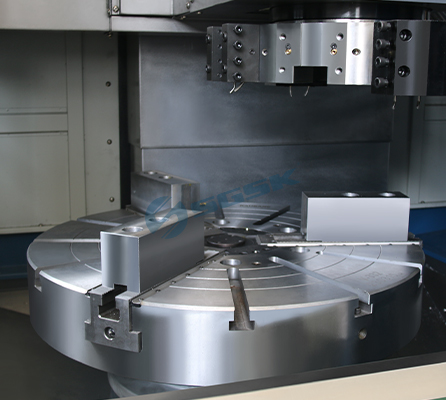

| Diameter of manual 4-jaw chuck | mm | 800 |
| Positioning accuracy | mm | ±0.008 |
| Repeat positioning accuracy | mm | ±0.005 |
| Machine weight | KG | 10500 |
| Overall dimensions | mm | 3000×2300×3300 |
