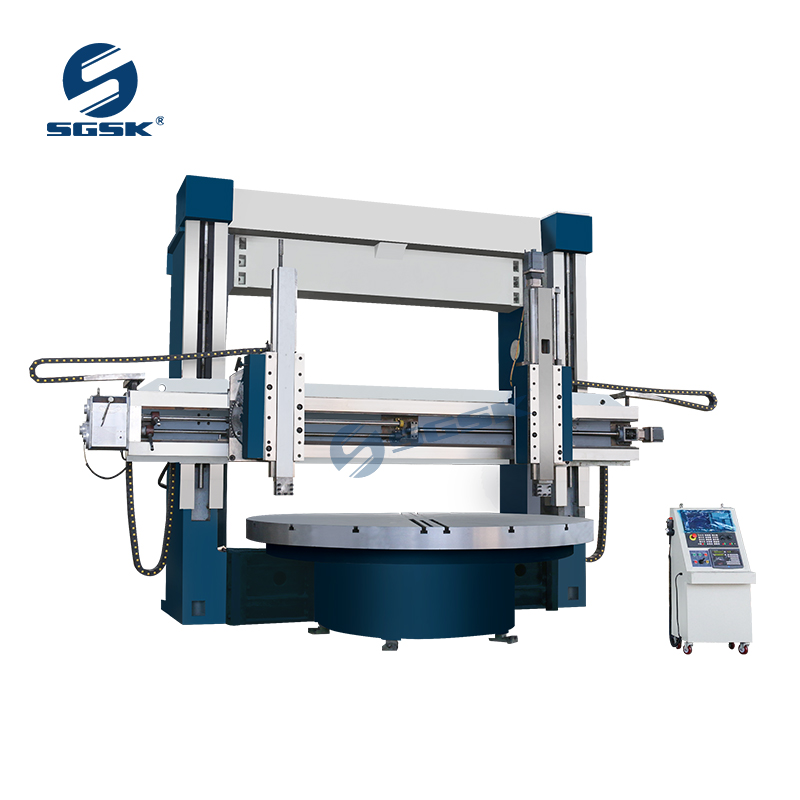

ODM. CK5232xH/20 CNC Double Column Vertical Lathe Machine

Product Model：

Inquire Now Next Product

Product Main Technical Parameters

SPECIFICATIONS	Units	CK5225×H/20	CK5232×H/20	CK5240×H/20	CK5240×H/32	CK5250×H/40	CK5250×H/65
Max.turning diameter	mm	2500	3200	4000	4000	5000	5000
Table diameter	mm	2250	2500	2830	3200	4000	4500
Max.height of workpiece	mm	1600/2000	1600/2000	2000/2500	2000/2500	2500/3150	2500/3150
Max.weight of workpiece	t	20	20	20	32	40	65
Max.torque of table	kn.m	63	63	63	70	80	100
Spindle speed range	r/min	2-63	2-63	2-63	0.42-42	0.42-42	0.42-42
Max.cutting force of rail head	kn	30	35	35	40	50	60
Range of tool feed	mm/min	0.2-145	0.2-145	0.2-145	0.2-145	0.2-145	0.2-145
Horizontal tool travel	mm	1400	1750	2150	2150	2765	2765
Vertical tool travel	mm	1000	1250	1250	1250	1250/1600	1250/1600
Tool head rapid traverse	mm/min	3500	3500	3500	3500	3500	3500
Tool size	mm	40*50	40*50	40*50	50*50	50*50	50*50
Main motor power	kw	55	55	55	75	75	90
Overall dimension(LWH)Machine weight(about)	cm	540470480/520	610480520/570	690510640/690	690550640/690	1000650710/840	1000700723/853
	t	34/36	38/40	44/46	51/52	64/66	81/84
