Product Model:

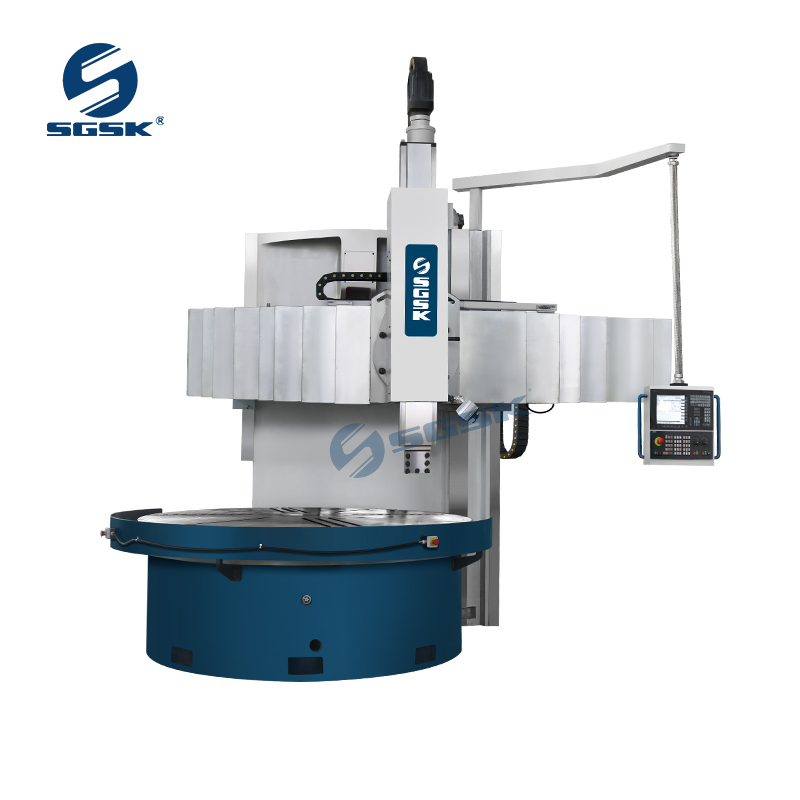

CK5116 CNC Vertical Lathe Machine

Product Main Technical Parameters

CNC Vertical Lathe Machine Features:

1. This vertical CNC lathe is a advanced equipment of high performance, widely technology range, high production efficiency. CNC vertical lathe is apply to machining of all industries. Rough and finish machining of inside&outside cylindrical surface, circular conical surface, end face, grooving, arc surface, sorts of curve face and thread

2. Worktable main spindle adopts high precision and adjustable radial clearance biserial short cylindrical roller bearing to centering to centering. Axial direction adopts CC hydrostatic guideway, worktable have the features of high running accuracy, big bearing capacity, small thermal deformation.

3. The lathe feed adopts AC servo motor, ball screw for drive. Rail head of cross beam equipped with close shield, increase the safety and the amenity

4. The lathe feed adopts AC motor drive, 16 steps main spindle speed change mechanism and realize the worktable range of speed

5. CNC system can select import or domestic according to user needs, CK51A series not have cover housing, CK51B series have cover housing, chip removal and cooling liquid recovery device

6.  Vertical column, cross beam guideway all use high-frequnency, quenching, and the quenching hardness is HRC48-55


CNC Vertical Lathe Machine Technical Specifications:

SpecificationUNITCK5116
Max. turning DiameterMm1600
Table diameterMm1400
Max. height of workpiece  Mm1000/1400
Max. weight of workpiece  T5
Max. torque of tableKN.m30
Range of table speedsr/min5-160
Max. cutting force of rail headKN22
Swivel of rail head

Range of feed ratesMm/min0.1-500
Horizontal travel of railheadMm915
Ram travel of rail headMm800
Rapid traverse of tool headMm/min4000
Elevating speed of cross railMm/min440
Height of tool bar sectionMm30*40
Power of main motorKW30
Overall dimensionsMm2800*2700*3870


5000*3400*4000
Weight of machinet12/13.5
