Product Main Technical Parameters

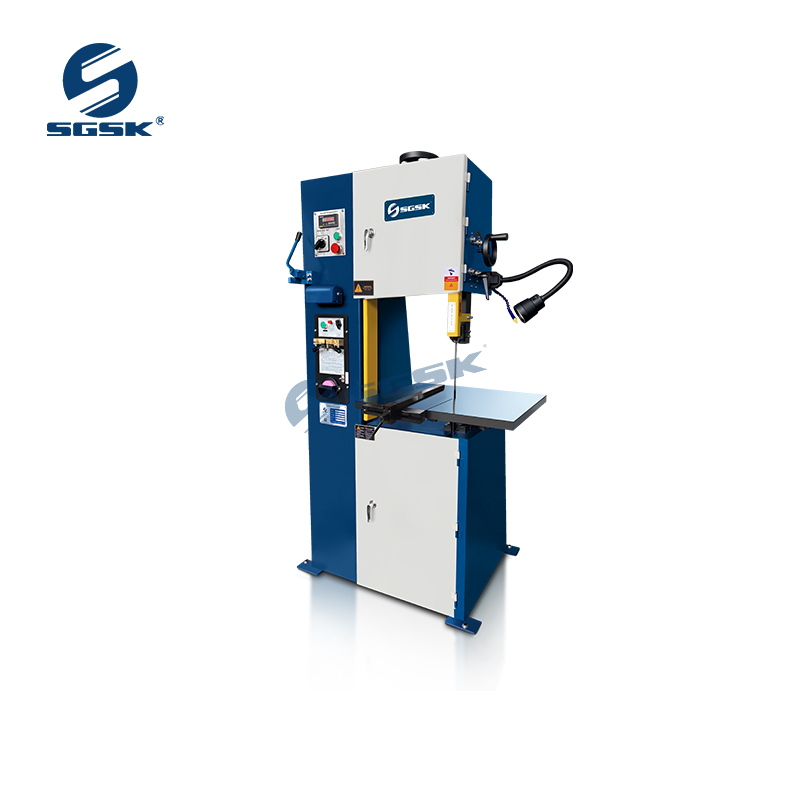

Vertical Sawing Machine Main Performance Characteristics：
1. Vertical cutting band saw can make various of cutting such as beveling, shaping, contour, slicing etc,
2. Work table can be swiveled,
3. Blade can be welded easily and reused,
4. With variable speed can make various material cutting such as metal, plastic wood rubber.
Vertical Sawing Machine Application：
For high precision metal cutting, is the ideal equipment for the industrial and mining enterprises and small workshops, use is very extensive.
Vertical Sawing Machine Main Technical Parameters:
| Model | VS-500 | |
| Max. cutting capacity | Height | 310mm(12.2″) |
| Width | 500mm(19.7″) | |
| Saw cutting speeds @ 50HZ | 0-1400rpm | |
| Table size | 660×700mm(26”x27.6”) | |
| Length of saw blade | 3980-4050mm | |
| Blade width | 3-16mm | |
| Table tilt | R-30° L-15° | |
| Motor power | 1.5KW (2PH)0.09KW(1/8PH) | |
| Electric welder | 2.4KVA | |
| Package size | 140×90×220cm | |
| NW/GW | 410/470kg | |
