Product Main Technical Parameters

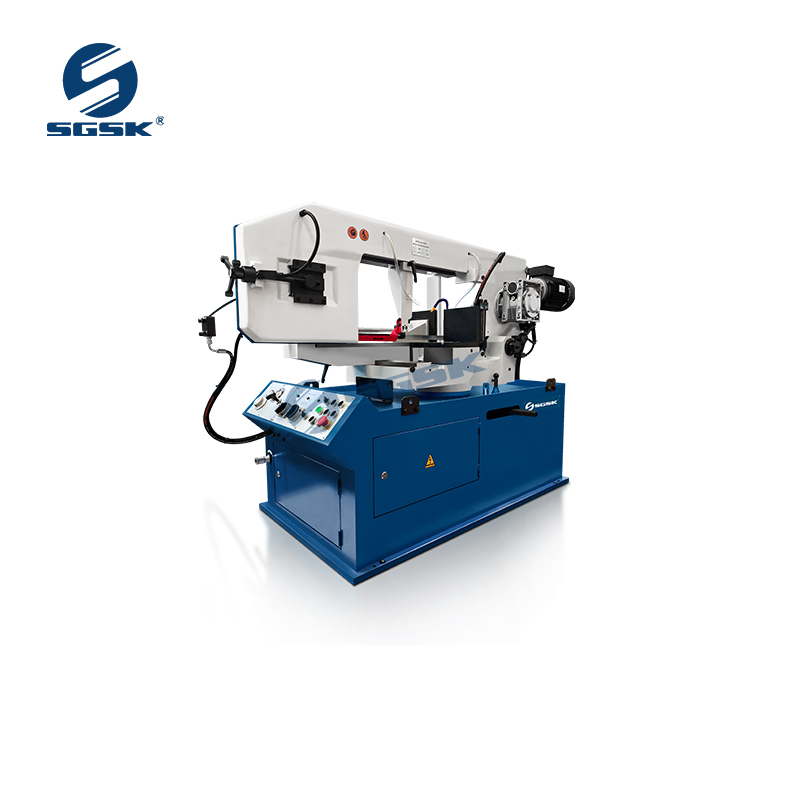

Band Saw Machine Main Performance Characteristics：
1. Maximum machining capacity can reach 18" ;
2. CNC precision sawing machine, hydraulic control system, automatic feeding, feed in raw material, cutting, automatic reset of saw bow ;
3. Variable frequency reducing speed motor control saw blade speed ;
4. Maximum feeding length can reach 650mm;
5. Saw bow gyration by hydraulic control;
6. The cooling system can prolong the service life of the saw blade can improve the precision of the work piece;
Band Saw Machine Application：
For high precision metal cutting, is the ideal equipment for the industrial and mining enterprises and small workshops, use is very extensive.
Band Saw Machine Main Technical Parameters:
| Main technical parameters | BS-650G | |
| Machining capacity | @90°Round steel | 460mm(18”) |
| @90°Square steel | 650x350mm | |
| @60°Round steel(right) | 310mm | |
| @60°Square steel(right) | 310x350mm | |
| @45°Round steel (left / right) | 460mm | |
| @45°Square steel (left / right) | 460x350mm | |
| Saw cutting speeds | 23-95rpm | |
| Saw blade size | 34x1.1x5220mm | |
| Motor power | 3.0 kW | |
| Drive | Gear | |
| Package size | 293x220x200cm | |
| NW/GW | 2020/2320kg | |
