Product Model：

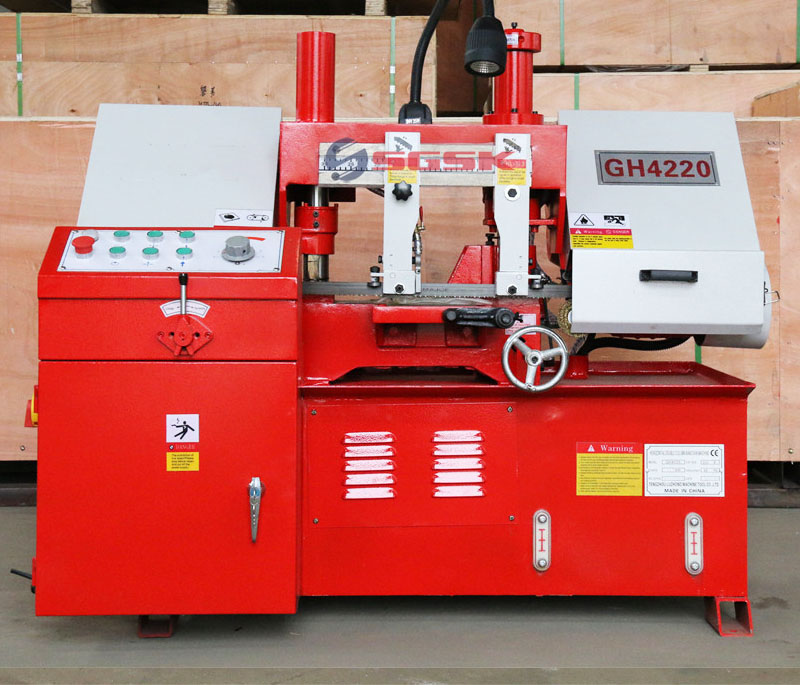

GH4220 Band Saw Machine

Inquire Now Next Product

Product Main Technical Parameters

Band Saw Machine Main Performance Characteristics：

1.Saw frame travels across solid dual-column guides

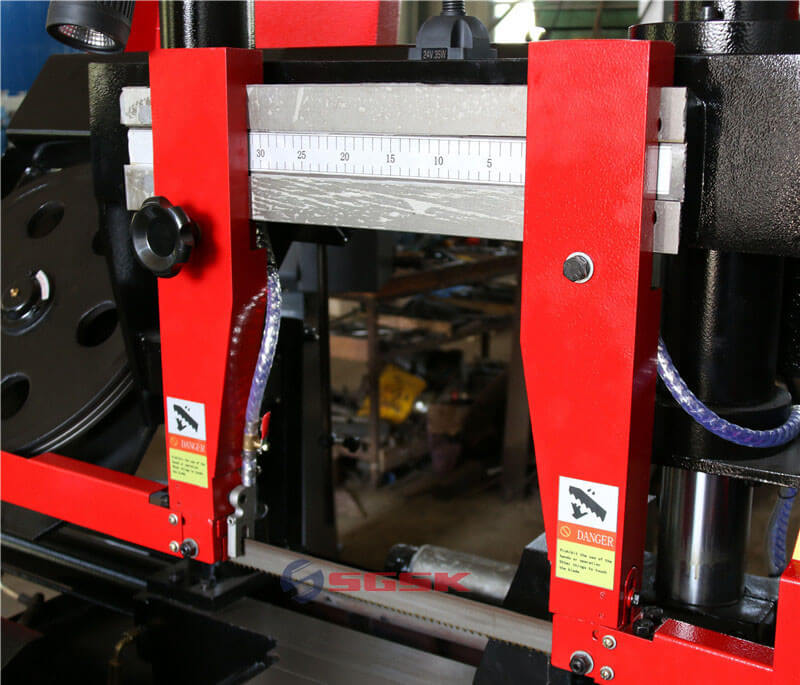

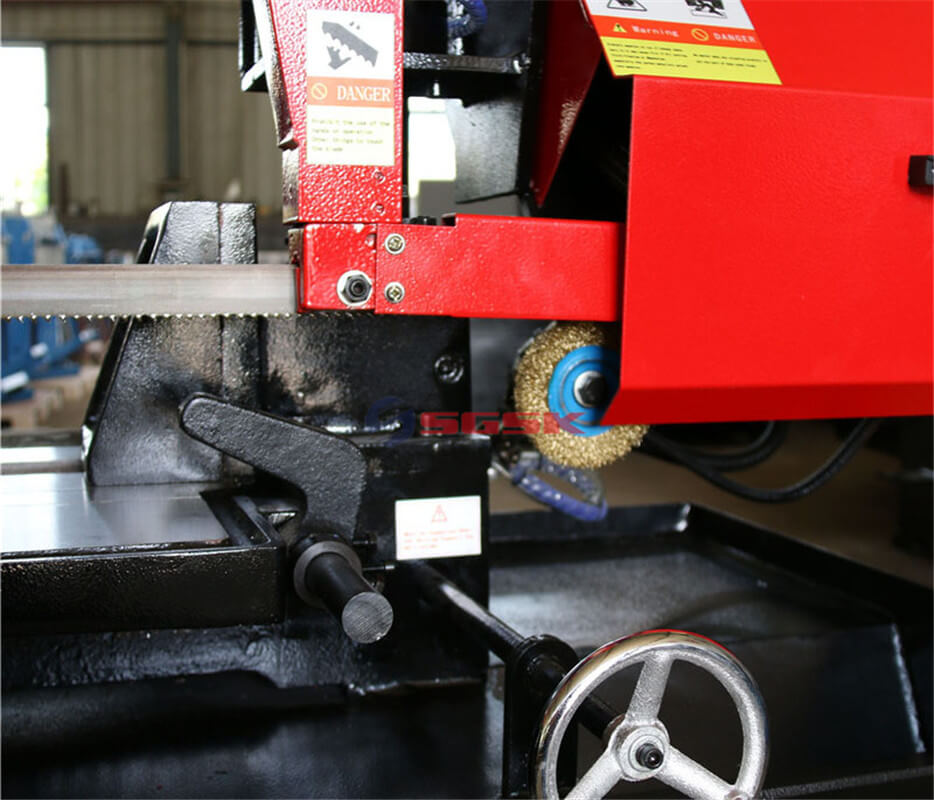

2.Rigid, adjustable saw blade guides prevent lateral escape of the saw blade and ensure maximum angular accuracy
3.Ideally positioned control panel within comfortable reach on top of the saw frame
4.At the end of each sawing cycle, the saw blade frame will automatically return to the home position
5.Tthrottle valve allows infinitely variable saw frame feed
6.Two cutting speeds for a wide spectrum of materials and workpiece diameters
7.Manually adjustable workpiece clamping and linear stop
8.Coolant system

Band Saw Machine Application：

For high precision metal cutting, is the ideal equipment for the industrial and mining enterprises and small workshops, use is very extensive.

Band Saw Machine Main Technical Parameters:

Main technical parameters	GH4220
Sawing range	200-200×200mm
Belt saw blade size	2650×27×0.9mm
Saw blade speed	27,45,69mm/min
Working clamping mode	Manual
Main motor power	1.5kW
Hydraulic motor power	0.55kW
Cooling pump power	0.04kW
Driving mode	Belt
External form size	1300×800×1100mm
