Product Main Technical Parameters
Band Saw Machine Features：
1.Extra rigid saw frame design ensures excellent angular accuracy and low vibration when cutting workpieces with very large diameters;
2.The material support surface features driven feed rollers with extremely high-load capacity ,suitable for very heavy workpiece;
3.Saw frame lifting adopted double oil cylinder control ,ensuring smooth working;
4.The heavy saw blade tensioning reduces the workload and helps prevent inaccuracies and premature wear of the saw blade;
5.One bi-metallic band saw blade and feed roller table are included

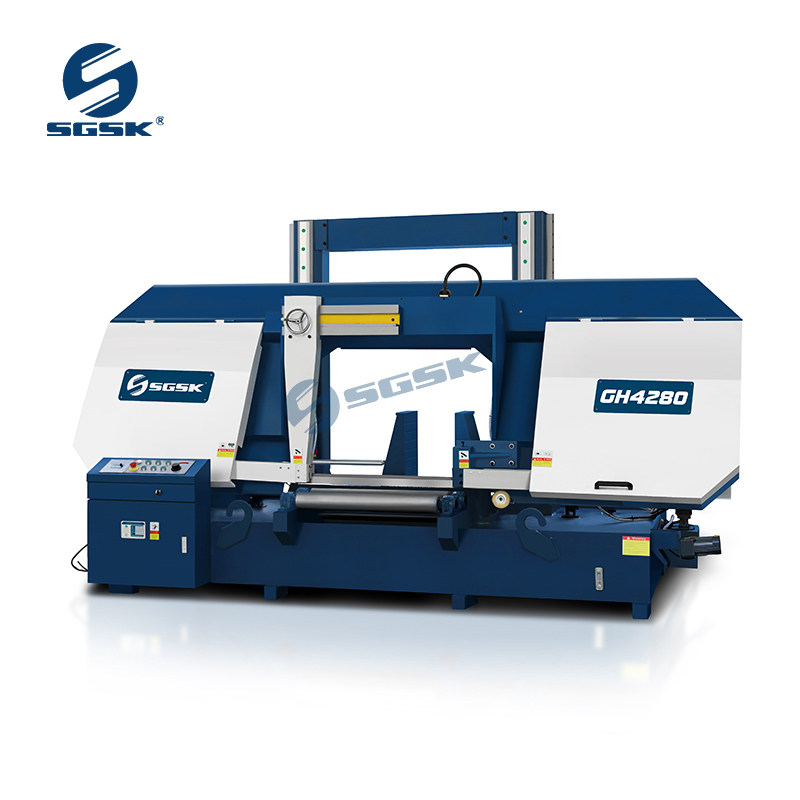

Band Saw Machine Main Technical Specifications:
| Specifications | GH4280 | ||
| Sawing range | Round steel | Φ800mm | |
| Square material | 800×800mm | ||
| Belt saw blade size | 8200X54X1.6mm | ||
| Saw blade speed | 15-70m/min | ||
| Motor power | Main motor | 11kw | |
| Oil pump motor | 2.2kw | ||
| Cooling pump motor | 0.125kw | ||
| Overall dimension | 4045x1460x2670mm | ||
| Weight | 7000kg | ||
| Standard equipment | Optional equipment |
hydraulic workpiece clamping , hydraulic blade tensioning , 1 saw blade belt , material support stand , coolant system , work lamp , operation manual | automatic blade breakage control , fast drop protection devise, hydraulic blade tension , automatic chip removal device , various blade linear speed, blade protection covers , wheel cover opening protection , Ce standard electrical equipment . |
