Product Main Technical Parameters

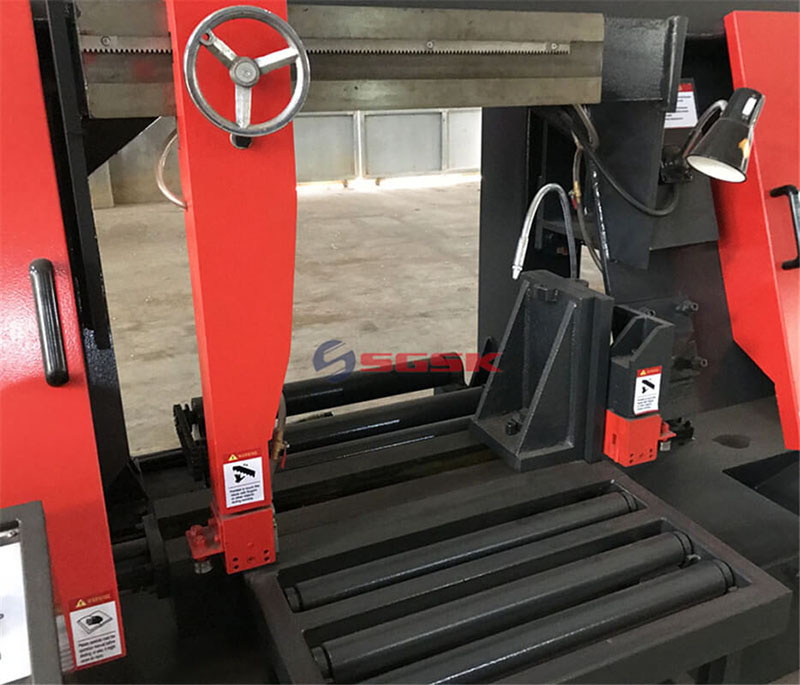

Band Saw Machine Features：
1.Extra rigid saw frame design ensures excellent angular accuracy and low vibration when cutting workpieces with very large diameters;
2.The material support surface features driven feed rollers with extremely high-load capacity ,suitable for very heavy workpiece;
3.Saw frame lifting adopted double oil cylinder control ,ensuring smooth working;
4.The heavy saw blade tensioning reduces the workload and helps prevent inaccuracies and premature wear of the saw blade;
5.One bi-metallic band saw blade and feed roller table are included
Band Saw Machine Main Technical Specifications:

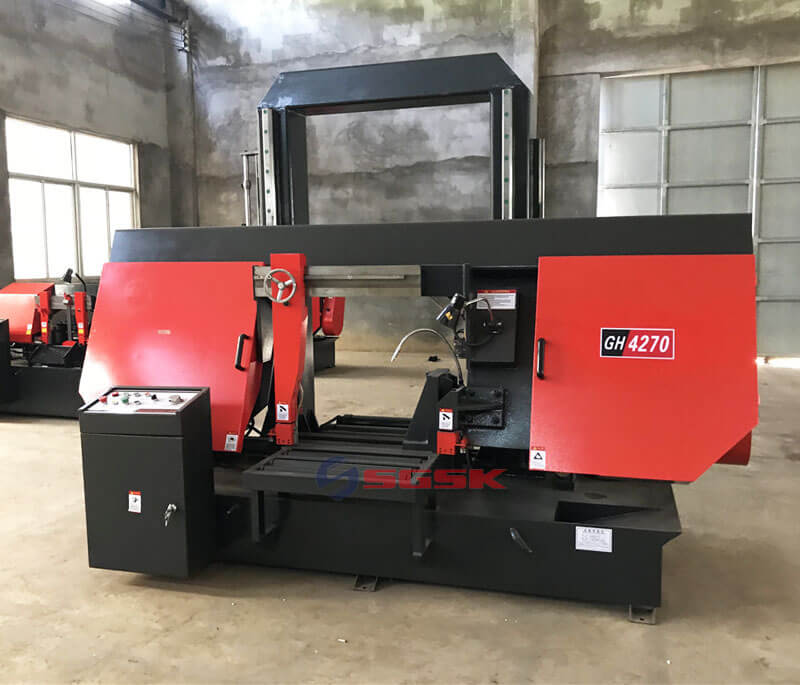

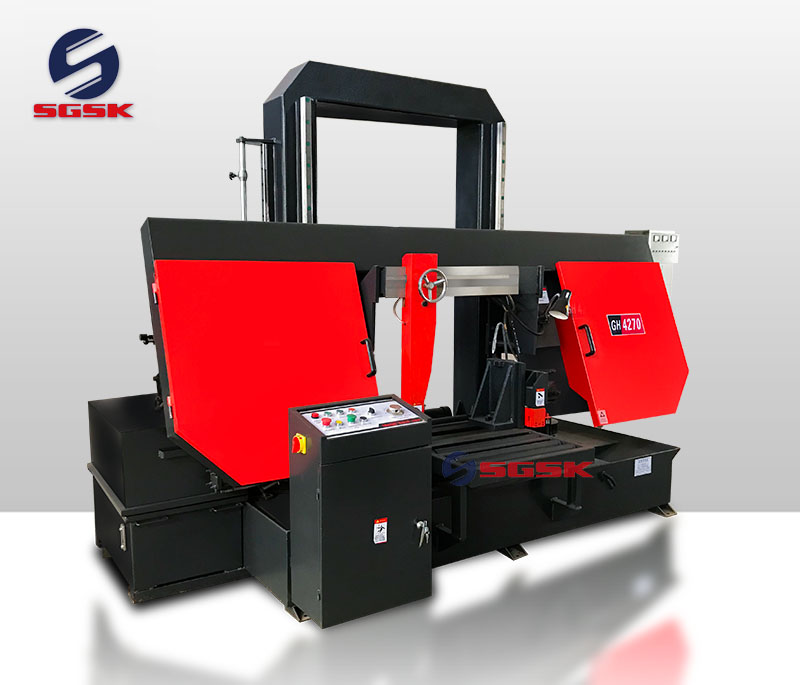

| Specifications | GH4270 | ||
| Sawing range | Round steel | Φ700mm | |
| Square material | 700×700mm | ||
| Belt saw blade size | 7205x54X1.6mm | ||
| Saw blade speed | 30,50,80m/min | ||
| Motor power | Main motor | 7.5kw | |
| Oil pump motor | 1.5kw | ||
| Cooling pump motor | 0.125kw | ||
| Overall dimension | 3500x1800x2500mm | ||
| Weight | 5000kg | ||
| Standard equipment | Optional equipment |
hydraulic workpiece clamping , hydraulic blade tensioning , 1 saw blade belt , material support stand , coolant system , work lamp ,operation manual | automatic blade breakage control , fast drop protection devise, hydraulic blade tension , automatic chip removal device , various blade linear speed, blade protection covers , wheel cover opening protection , Ce standard electrical equipment . |
