Product Model:

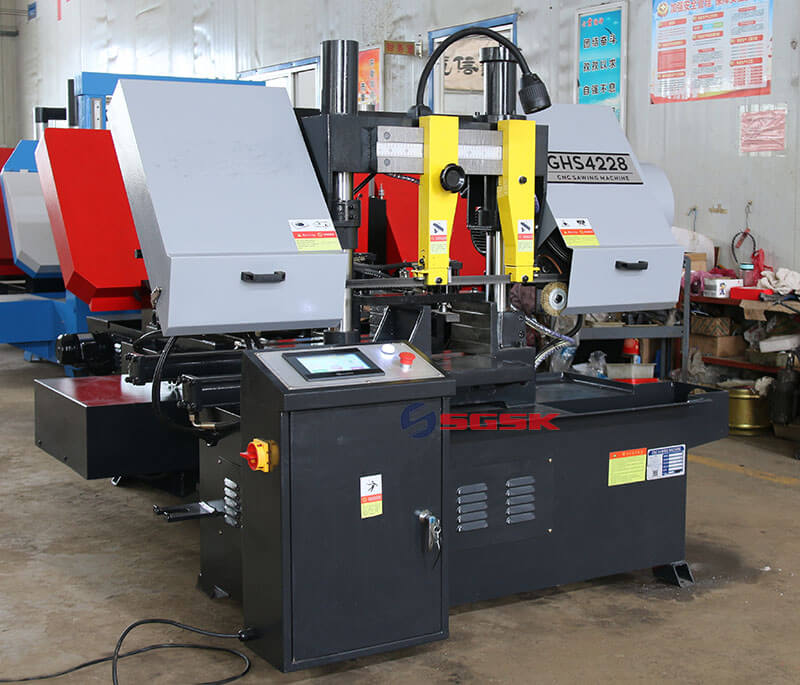

GHS4228 CNC Sawing Machine

Product Main Technical Parameters

CNC Sawing Machine Main Performance Characteristics:

1. Button type control panel, sawing mode change flexible, manual and automatic combination;

2. PLC controller, complete automatic sawing process, feeding length 0-500mm;

3. Double upright column structure, vertical lift, high stability;

4. Cutting speed  hydraulic control, stepless regulation speed,

5. Stable performance, high efficiency, suitable for bulk material sawing.


CNC Sawing Machine Application:

For high precision metal cutting, is the ideal equipment for the industrial and mining enterprises and small workshops, use is very extensive.


CNC Sawing Machine Main technical parameters:

Main technical parametersGHS4228
Sawing range280-280×280mm
Belt saw blade  size3505×34×0.9mm
Saw blade speed27,45,69mm/min
Working clamping modehydraulic
Main motor power3kW
Hydraulic motor power0.75kW
Cooling pump power0.04kW
External form size1860×2400×1400mm
