Product Model:

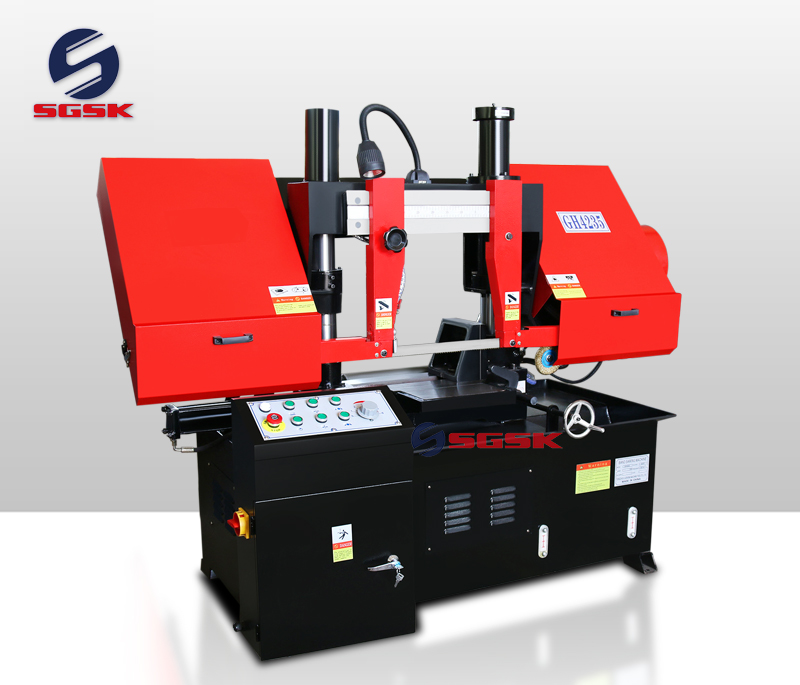

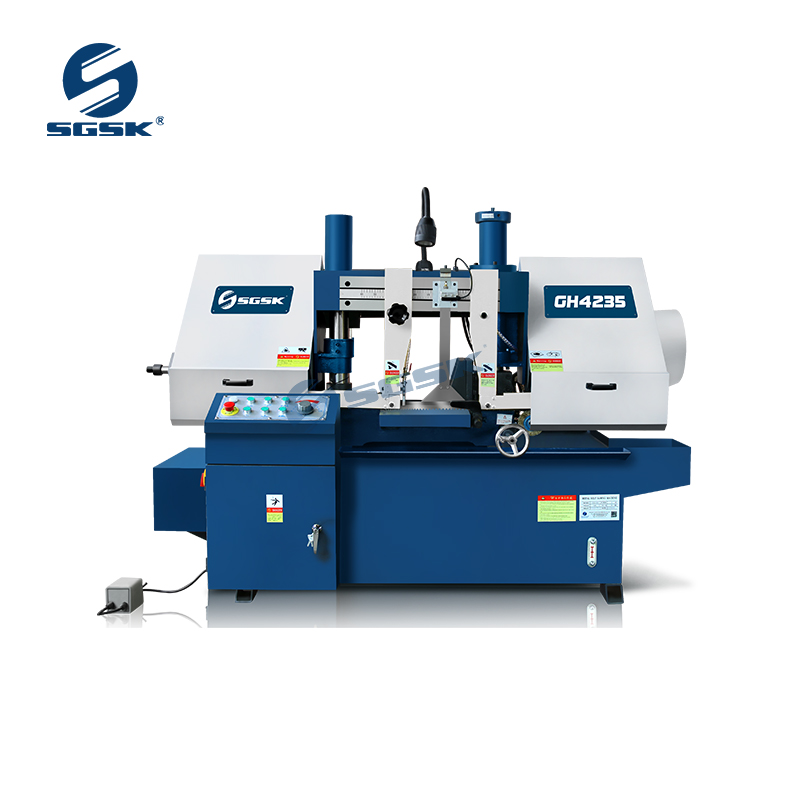

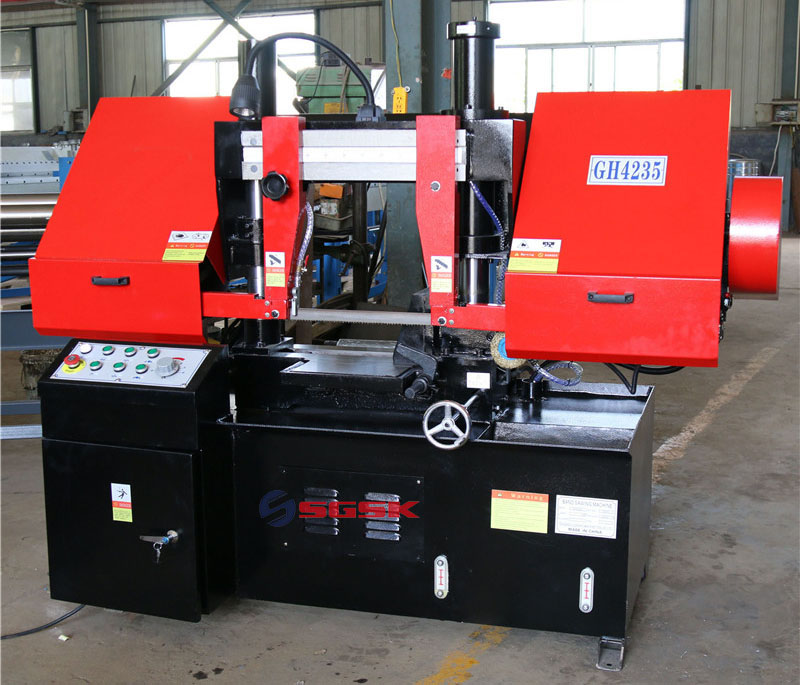

GH4235 Band Saw Machine

Product Main Technical Parameters

Band Saw Machine Main Characteristics

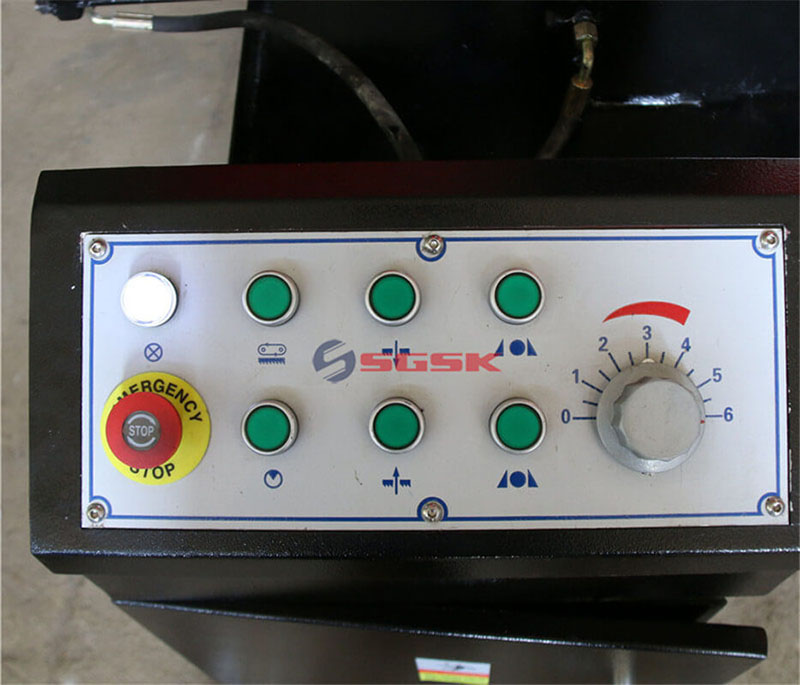

1. Button type control panel, sawing mode change flexible, manual and automatic combination;

2. PLC controller, complete automatic sawing process, feeding length 0-500mm;

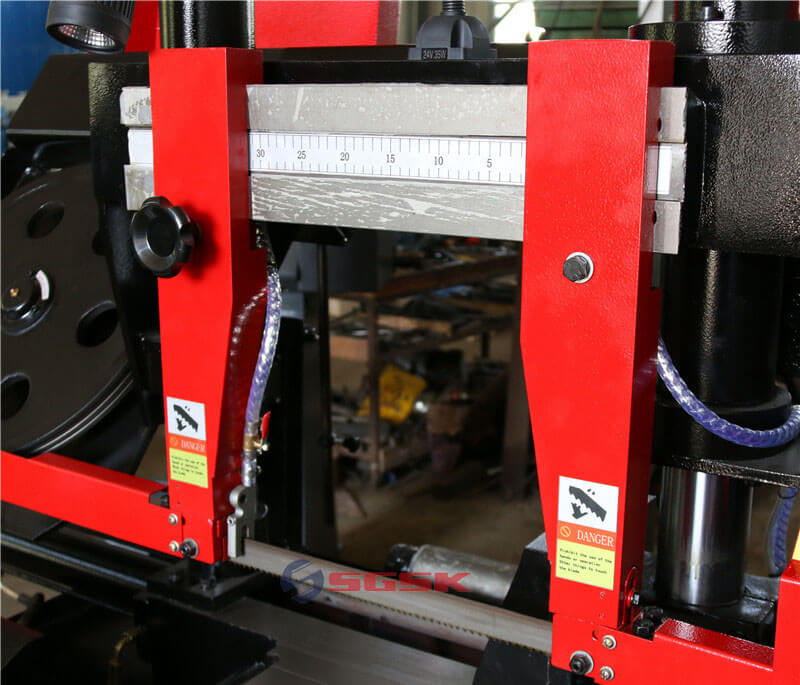

3. Double upright column structure, vertical lift, high stability;

4. Cutting speed  hydraulic control, stepless regulation speed

5. Stable performance, high efficiency, suitable for bulk material sawing.


Band Saw Machine Application

For high precision metal cutting, is the ideal equipment for the industrial and mining enterprises and small workshops, use is very extensive.


 Band Saw Machine Main Technical Parameters:

Main technical parametersGH4235
Sawing range350-350×350mm
Belt saw blade  size4115×34×1.1mm
Saw blade speed27,45,69mm/min
Working clamping modehydraulic pressure
Main motor power3kW
Hydraulic motor power0.75kW
Cooling pump power0.04kW
External form size2000×2500×1500mm
