Product Main Technical Parameters

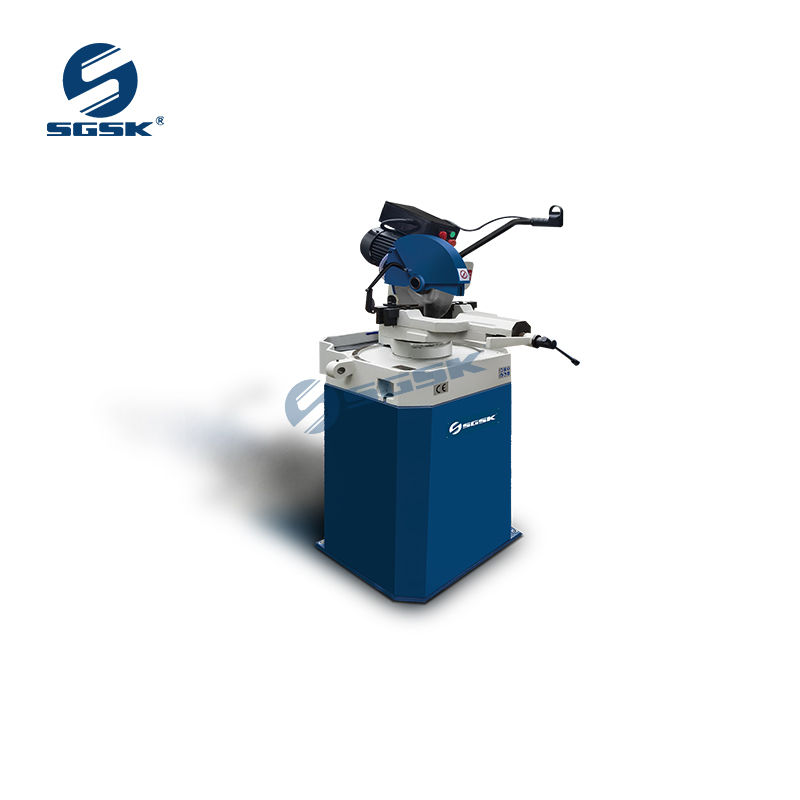

Circular Sawing Machine Main Performance Characteristics：
1. The HSS saw blade of our circular saw is highly efficient and durable,
2. The 24V low-voltage controlled hand switch is convenient for operation,
3. The double clamp structure can quickly clamp materials and rotate 45°from side to side for cutting;
4. Our circular saw features a double speed motor and with low noise can slow down through worm and gear;
5. The safety hood of saw blade opens or closes according to the cutting needs, making it safety;
6. The cooling system of circular saw can prolong the service life of saw blade and improve the precision of the work piece;
7. Vice complete with anti-burr device, Movable head 45°right and left;
8. Reduction unit in oil bath, Membrane pump for coolant.,
Circular Sawing Machine Application：
For high precision metal cutting, is the ideal equipment for the industrial and mining enterprises and small workshops, use is very extensive.
Circular Sawing Machine Main Technical Parameters:
| Model | CS-275 | |
| Max. blade size | 275mm(10.8″) | |
| Machining capacity | Round steel@90° | 70mm(2.75″) |
| Square steel@90° | 90×45mm(3.5″×1.77″) | |
| Round steel@45° | 65mm(2.56″) | |
| Square steel@45° | 75×45mm(2.75″×1.77″) | |
| Blade speed @ 50HZ | 42rpm | |
| Vice opening | 100mm(4”) | |
| Motor power | 1.1KW(1.5HP) | |
| Drive | Gear | |
| Package size | 89×58×74cm(body)77x46x33cm(stand) | |
| NW/GW | 148/174kg | |
