Product Model:

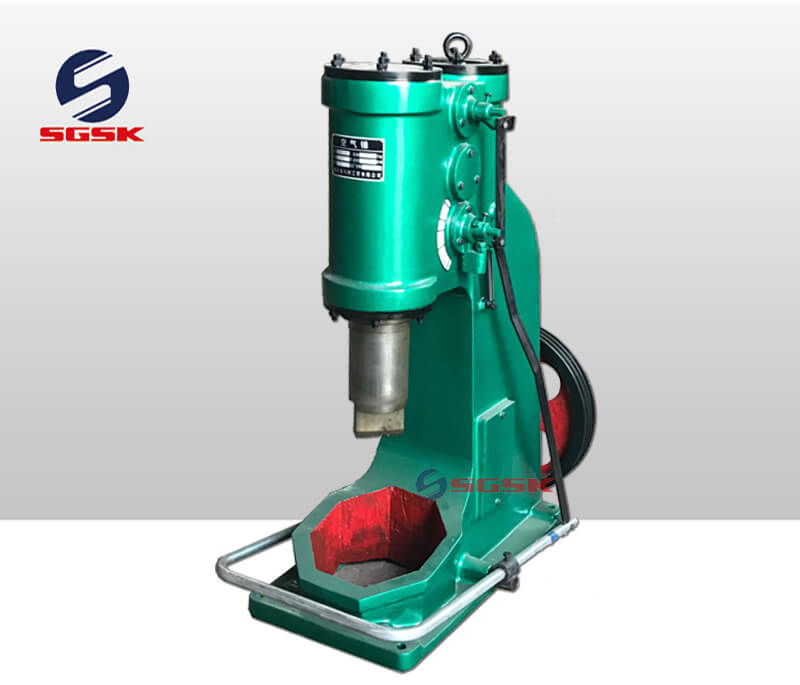

C41-150 Separate Type Air Hammer Machine

Product Main Technical Parameters

Separate Type Air Hammer Machine Main Performance Characteristics:

1.Powered by compressed air, meet the needs of production safety, and tapping force against frequency by adjusting the air pressure control,

2. The use of the body is made of cast iron, large tonnage air hammer and anvil materials made of steel,

3. Simple mechanism ,Is not easy to damage


Separate Type Air Hammer Machine Application:

Applicable to all kinds of free forging: such as extension, upsetting, punching, shearing, forging welding, torsion and bending using a die cushion can be a variety of open die forging.


Separate Type Air Hammer Machine Main Technical Specification:

Parameter / project / modelUnitsC41-150kg
Blow energyK j2.2
Height of working areamm370
Number of blowsmin-1180
Anvil block sizemm200 x 85
Malleable square steel lengthmm130 x 130
Malleable circular  steel lengthmm¢145
Match use of powerK w15
Motor speedr. p. m1470
Anvil sitting of  weightkg1800
Gross weightkg5060
Appearance sizemm2080*1240*2350
