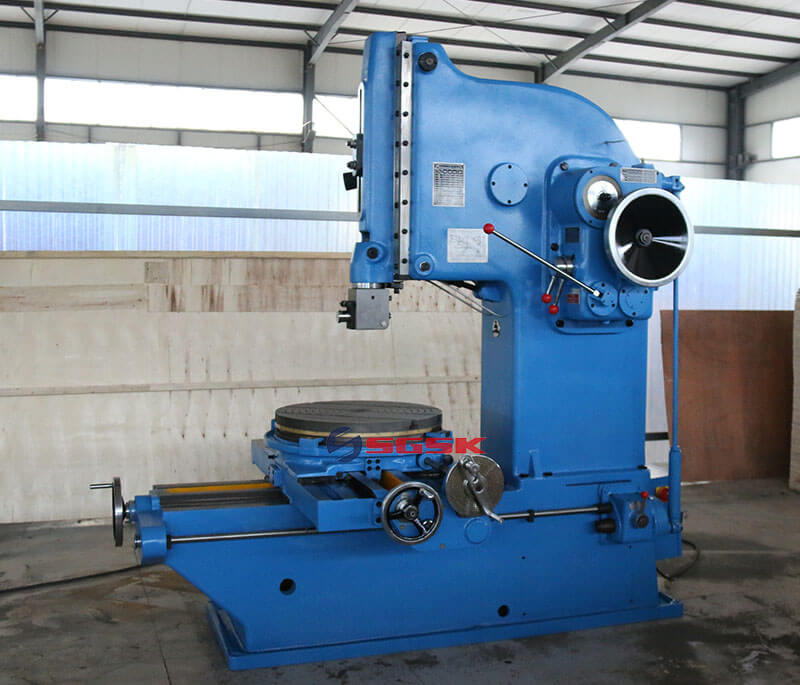

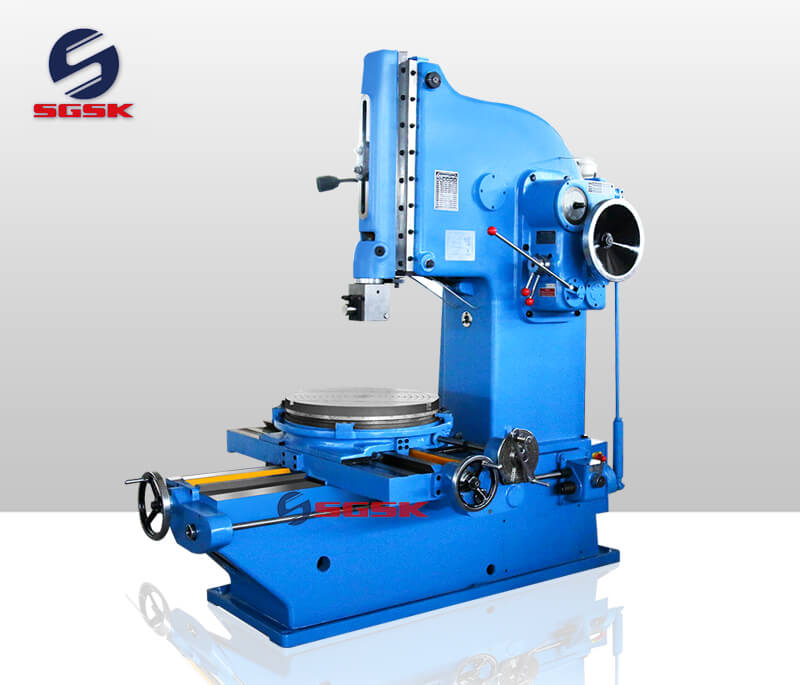

B5040 Slotting Machine

Inquire Now Next Product

Product Main Technical Parameters

Slotting Machine Main Performance Characteristics：

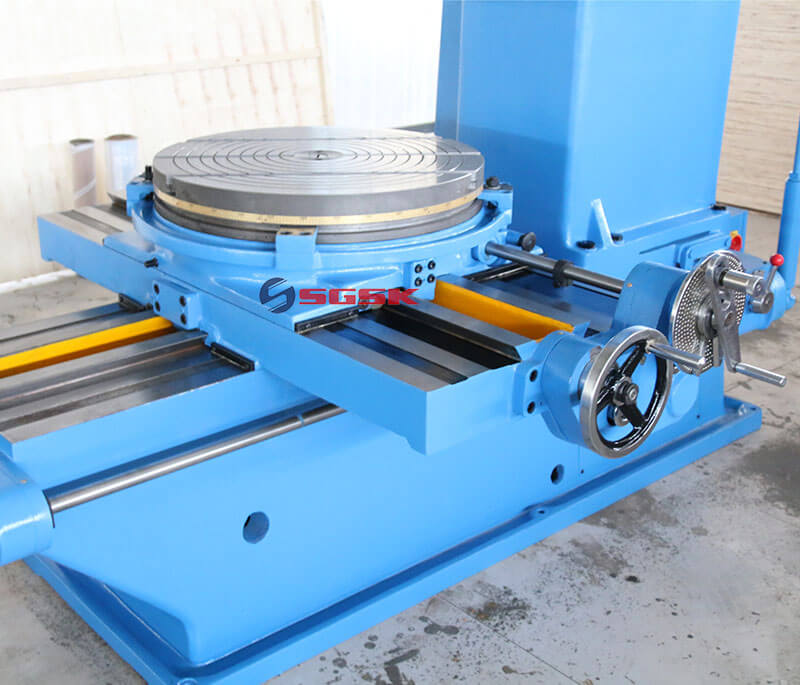

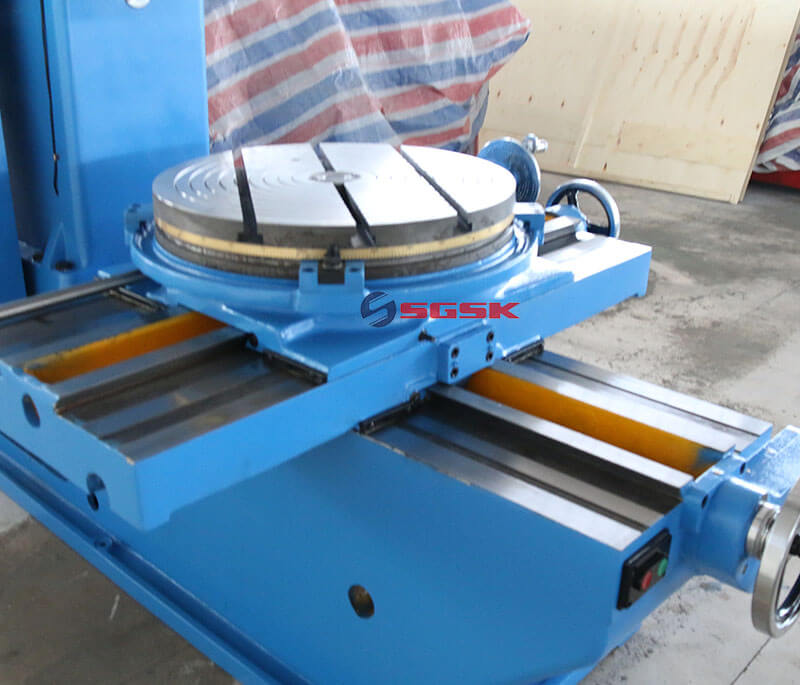

1.The working table of the machine tool is provided with three different directions of feed (longitudinal, horizontal and rotary), therefore work object go through once clamping, Several surfaces in the machine tool machining

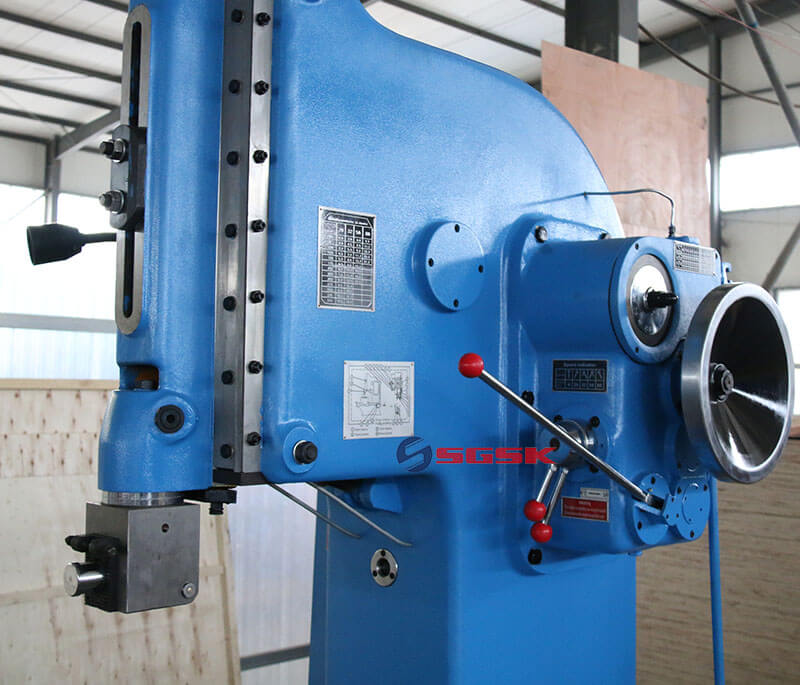

2.Hydraulic transmission mechanism with sliding pillow reciprocating motion and hydraulic feed device for working table.

3.The sliding pillow has the same speed in every stroke, and the movement speed of the ram and the working table can be adjusted continuously.

4.Hydraulic control table have ram commutation oil for oil reversing mechanism, In addition to hydraulic and manual feed outer, Even there single motor drive vertical, horizontal and rotary fast moving.

5.Use hydraulic feed the slotting machine, Is when the work is over turning back instantaneous feed, Therefore be better than mechanical slotting machine used drum wheel feed.

Slotting Machine Application：

This machine be used for interpolation plane, forming surface and Keyway Etc. And can insert the inclination in the 10° Mold and other within the scope of etc. work matter,,

Enterprise suitable for single or small batch production.

Slotting Machine Main Technical Parameters:

Specification	Unit	B5040
Max. slotting length	mm	400
Max.weight of workpiece	kg	500
Max.cutting force	N	7500
No.of ram strokes per minute		20.32.50.80
Ram vertical adjustment distance	mm	315
Ram tilt angle	°	0-8
Max.tool shank size(W*H)	mm	25x40
Table Diameter	mm	630
Distance between tool holding and column front	mm	600
Distance between table surface and low end of ram	mm	690
Max. longitudinal travel of table	mm	620
Max. cross travel of table	mm	560
Table motorized feed range	mm	0.08-1.21
Motor power	kw	4
Motor speed	rpm	960
Overall dimension(LWH)	mm	229015252485
Machine weight	kg	3700
