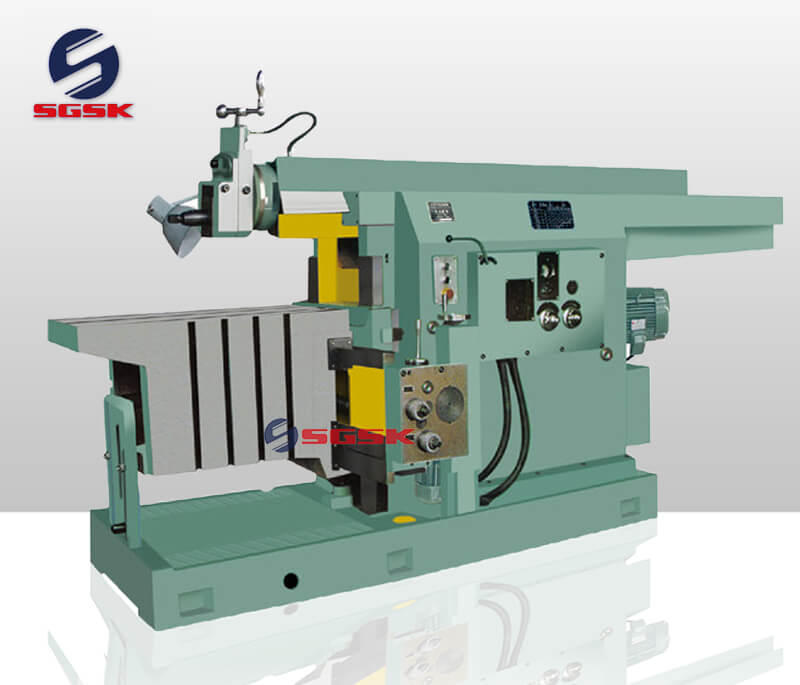

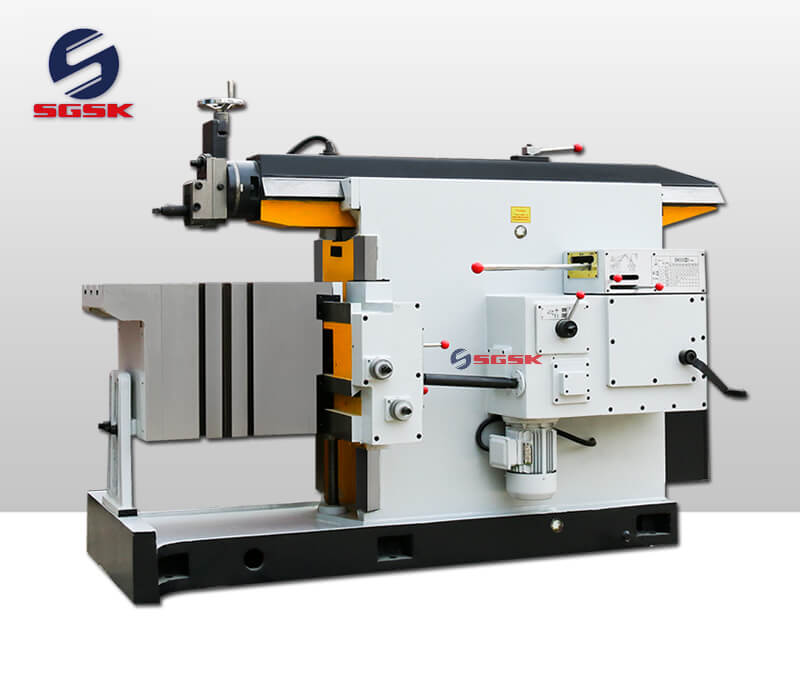

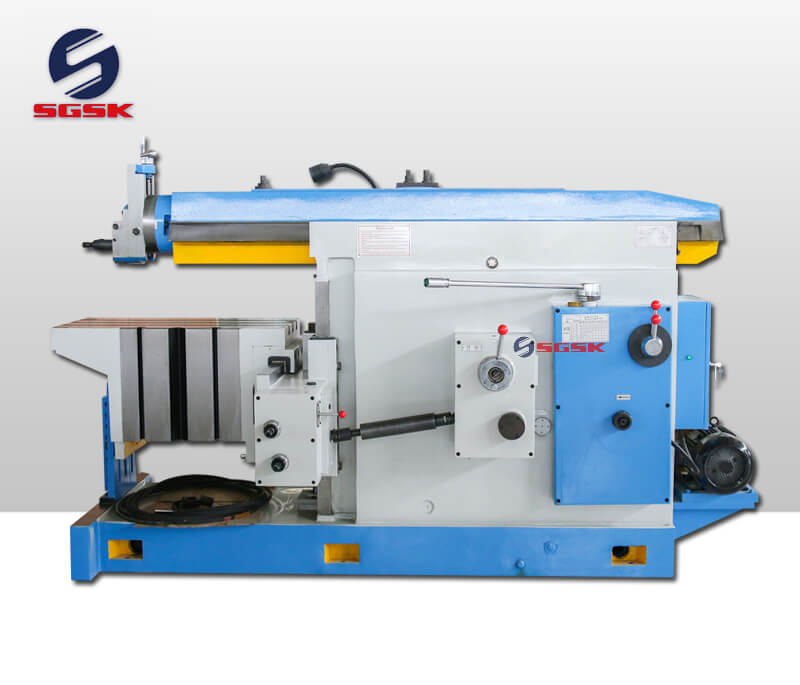

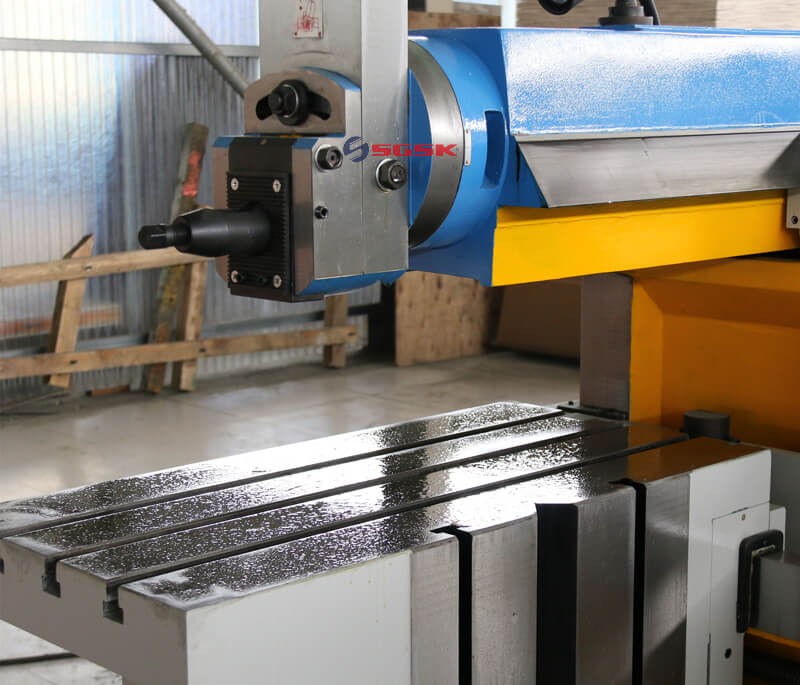

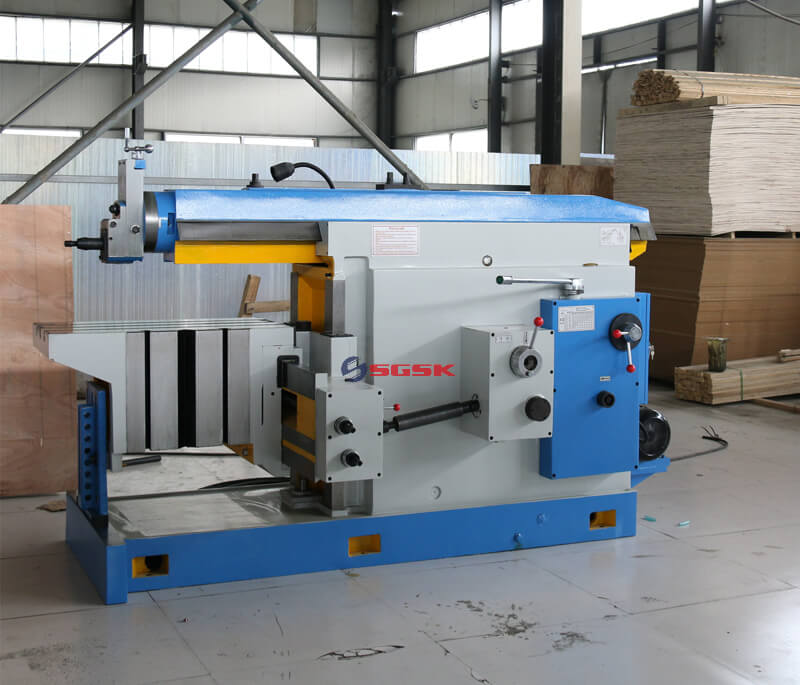

BC60100 Shaper Machine

Inquire Now Next Product

Product Main Technical Parameters

Shaper Machine Main Features:

1 Optimize the principle of design, the machine is beautiful, easy to operate.

2 The vertical and horizontal guide rail is used for rectangular guide and the stability is better.

3 The use of advanced ultra - frequency quenching process, so that the machine's life longer.

4. It is suitable for cutting all kinds of small parts of the plane, T type groove and forming surface, can be used for single or mass production.

Shaper Machine Main Technical Specification:

Specification	Units	BC60100
Maximum shaping length	mm	1000
Maximum moving distance of the working table(level)	mm	800
Maximum distance from ram bottom to table surface	mm	400
Maximum moving distance of the working table (vertical)	mm	380

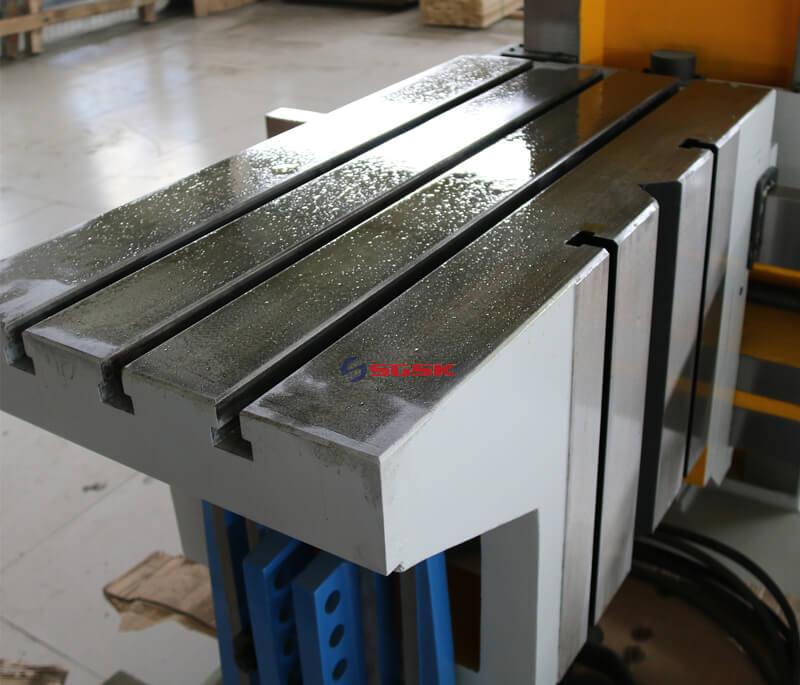

Table size (L*W)	mm	1000×500
Maximum tool carrier travel	mm	160
Tool carrier rotary angle	°	±60°
Maximum size of tool planer(W*T)	mm	30×45
Number of ram reciprocating per minute		15、20、29、42、58、83
Feeding range of horizontal travel(10steps)	mm	0.3~3
Feeding range of vertical travel(10steps)	mm	0.15~0.5
Speed of rapid travel horizontal table	mm	3
Speed of rapid travel vertical table	mm/min	0.5
T-slots width	mm	22
Main motor power	kw	7.50
Overall dimensions (LWH)	mm	3640×1575×1780
N/G.W	kg	4870/5150
