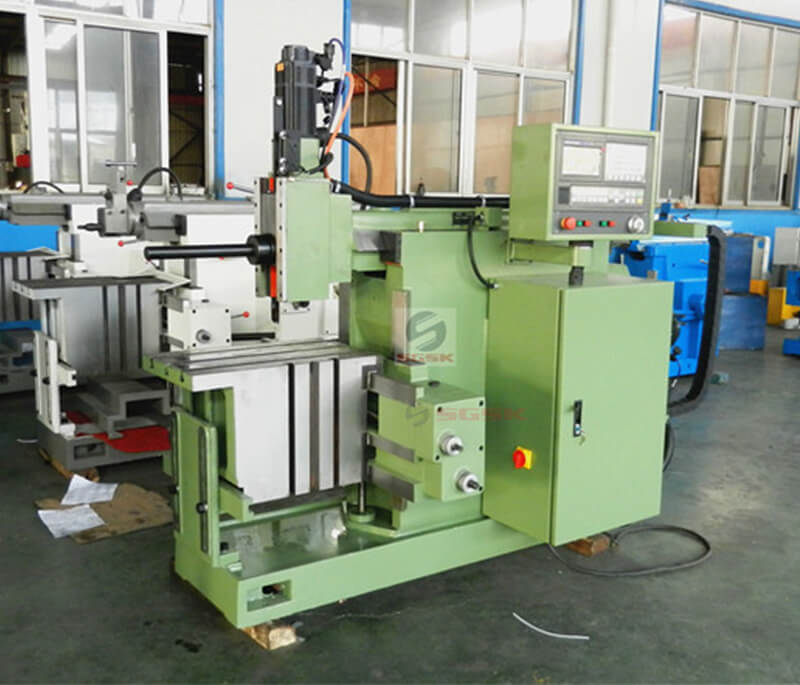

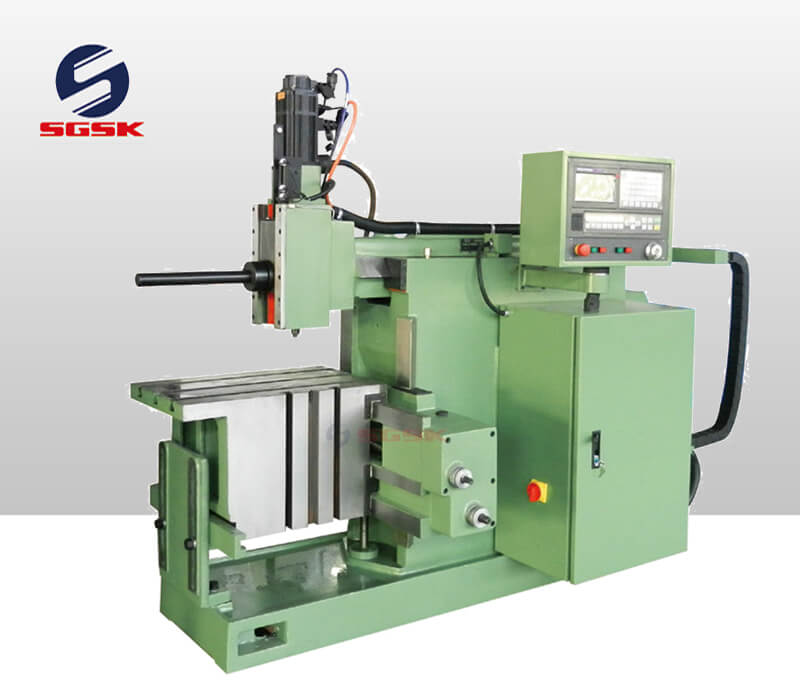

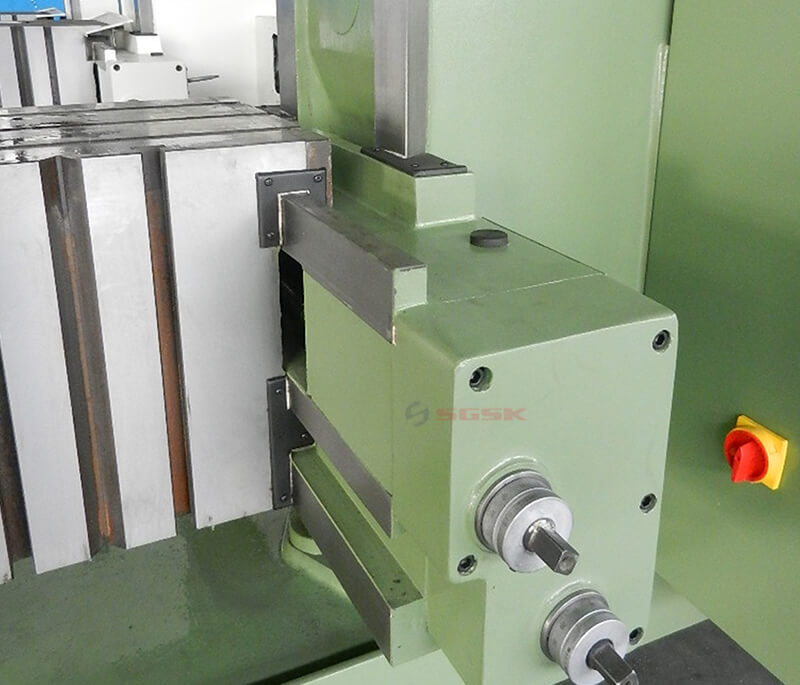

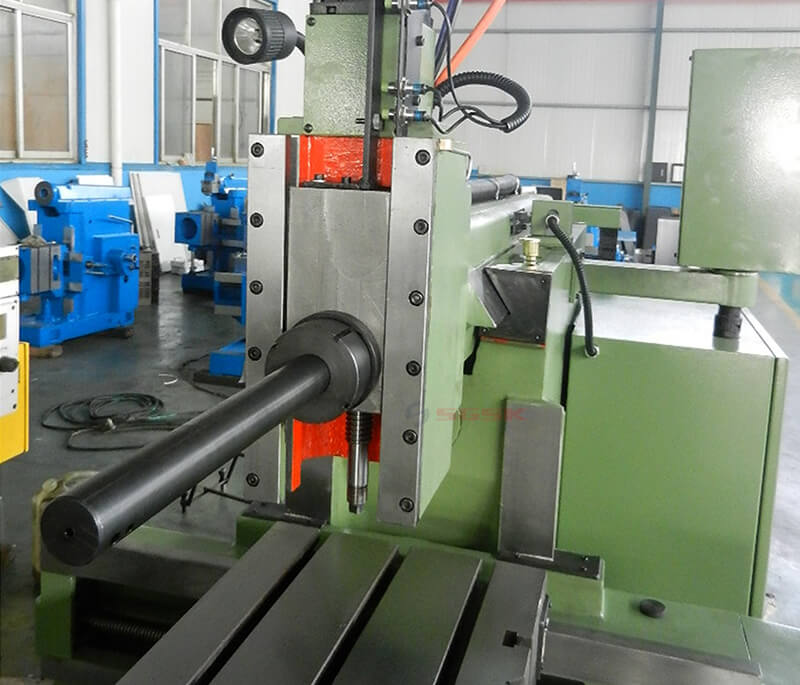

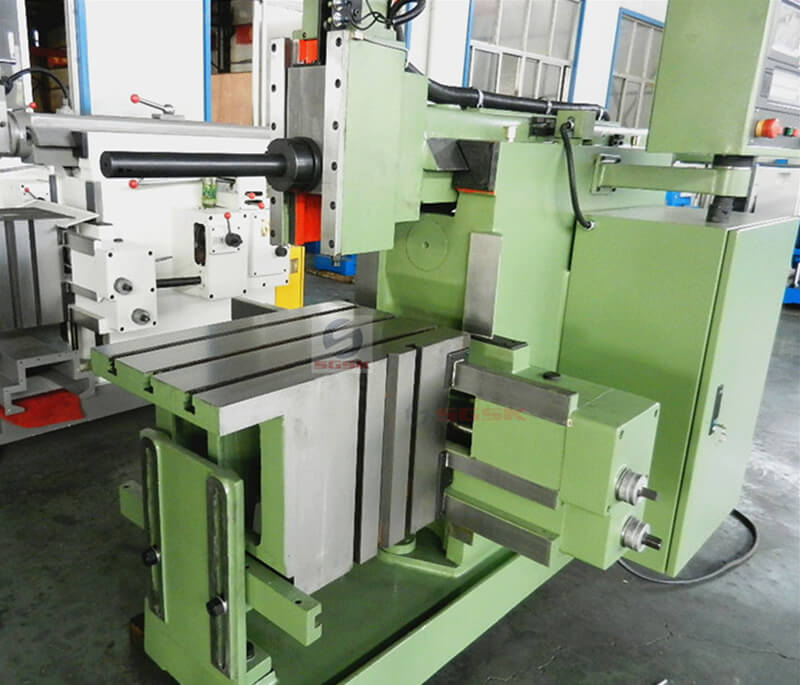

BYK60100 BYK60125 CNC Hydraulic Shaper Machine

Inquire Now Next Product

Product Main Technical Parameters

Specifications	Units	BYK60100	BYK60100C	BYK60125	BYK60125A
Maximum shaping length	mm	1000	1000	1250	1250
Maximum table cross travel	mm	800	1500	800	1200
Maximum table vertical travel	mm	380	380	380	380
Bench plane size(length x width )	mm	1000X500	1000X1000	1250X500	1250X500
Ram from the underside of the work surface	mm		380	380	400
Turret maximum working stroke	mm	160	160	160	160
Turret swivel angle		+/-60	+/-60	+/-60	+/-60
The maximum length of the planing knife holder angle of rotation	mm	850	850	850	850
Ram working speed	M/min	3-38	3-38	3-38	3-38
Ram maximum cutting force	KN	28	28	28	28
Fast moving speed of table lateral	M/min	0-6	0-6	0-6	0-6
Vertical direction	M/min	0-1.5	0-1.5	0-1.5	0-1.5
Table feed range
lateral	min	0.01-5	0.01-5	0.01-5	0.01-5
Vertical direction	mm	0.01-5	0.01-5	0.01-5	0.01-5
On work surface central T-slot width	mm	22+0.052	22+0.052	22+0.052	22+0.052
On work surface T-slot central distance	mm	120	120	120	120
Maximum table bearing weight	kg	500	500	500	500
The maximum size of the planer	mm	30x45	30x45	30x45	30x45
Main motor	Kw r/min	7.5 970	7.5 970	7.5 970	7.5 970
Table lateral movement servomotor	Kw r/min	1.5 1500	1.5 1500	1.5 1500	1.5 1500
Longitudinal movement of servomotors	Kw r/min	1.5 1500	1.5 1500	1.5 1500	1.5 1500
Mobile turret servo motor	Kw r/min	1.2 2000	1.2 2000	1.2 2000	1.2 2000
SYYB02 double vane pump flow	L/min	50/100	50/100	50/100	50/100
Overall dimensions(LWH)	mm	3640x1550x1850	3640x1550x1850	4140x1550x1850	4140x1550x1850
Machine weight	kg	4100	6000	4500	4600
Plane of the text piece	mm	0.03	0.08	0.03	0.03
Plane parallel to the base surface on the specimen	mm	0.04	0.10	0.04	0.04
parallel sides of the specimen surface	mm	0.06	0.10	0.06	0.06
Specimen side of the vertical plane of the base	mm	0.03	0.08	0.03	0.03
Surface roughness		3.2	3.2	3.2	3.2
