Product Model:

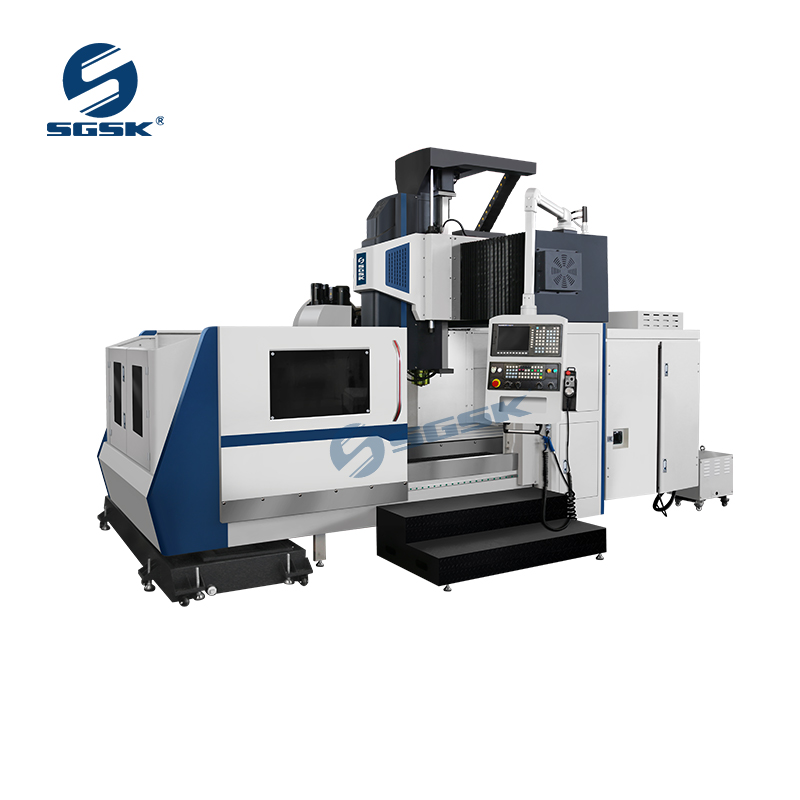

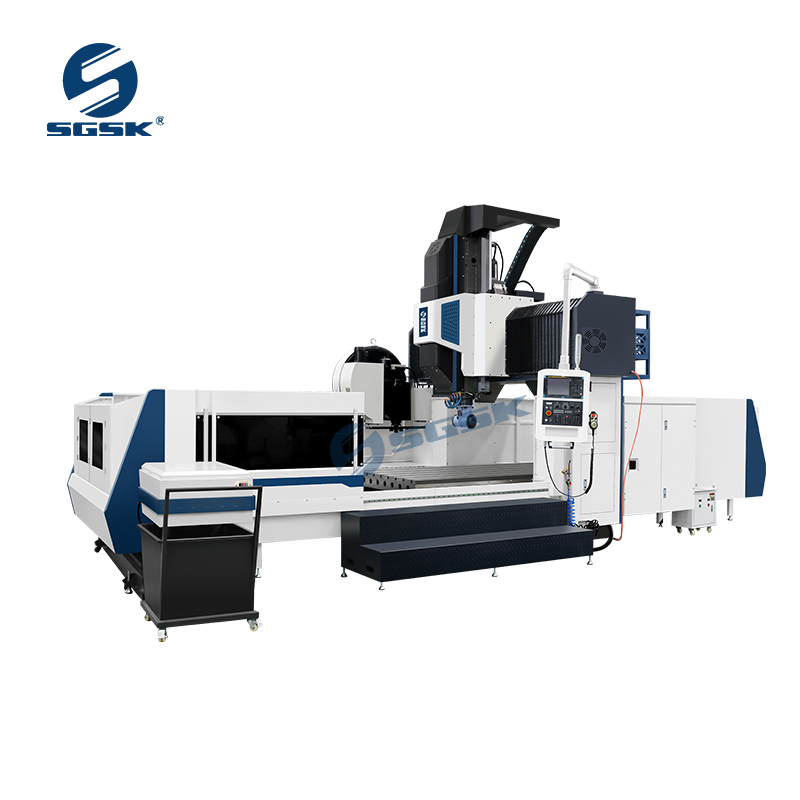

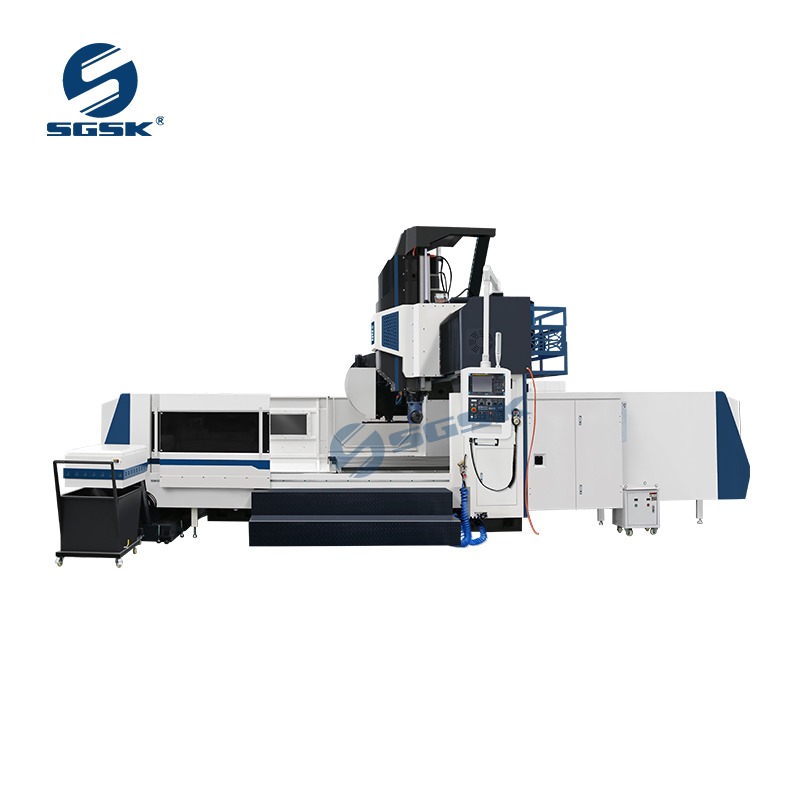

GMC3018 Gantry Machining Center

Product Main Technical Parameters

SpecificationsGMC3018
X axis travel3000mm
Y axis travel1800mm
Z axis travel800mm
Distance between spindle nose and worktable surface140-940mm
Distance from spindle axis to column surface450mm
Distance between two columns1800mm
Distance between worktable and beam1200mm
X rapid traverse speed10m/min
Y rapid traverse speed12m/min
Z rapid traverse speed12m/min
Cutting feed speed1-10m/min
Three-axis servo motor torqueX/Y/Z:30/30/30N.m
Table size3000×1600mm
Max. worktable load3000Kg
Distance from table to floorApprox 950mm
T slot(number-width-pitch)5×22-150mm
Connection Typebelt
Max. spindle speed6000 rpm
Spindle taperBT50
Main motor power15KW
Positioning accuracy(JIS standard)±0.005/300mm
Repeat positioning accuracy(JIS standard)±0.003mm
Machine weightApprox 26000Kg
Overall dimensionApprox 6500×3000×3400mm
