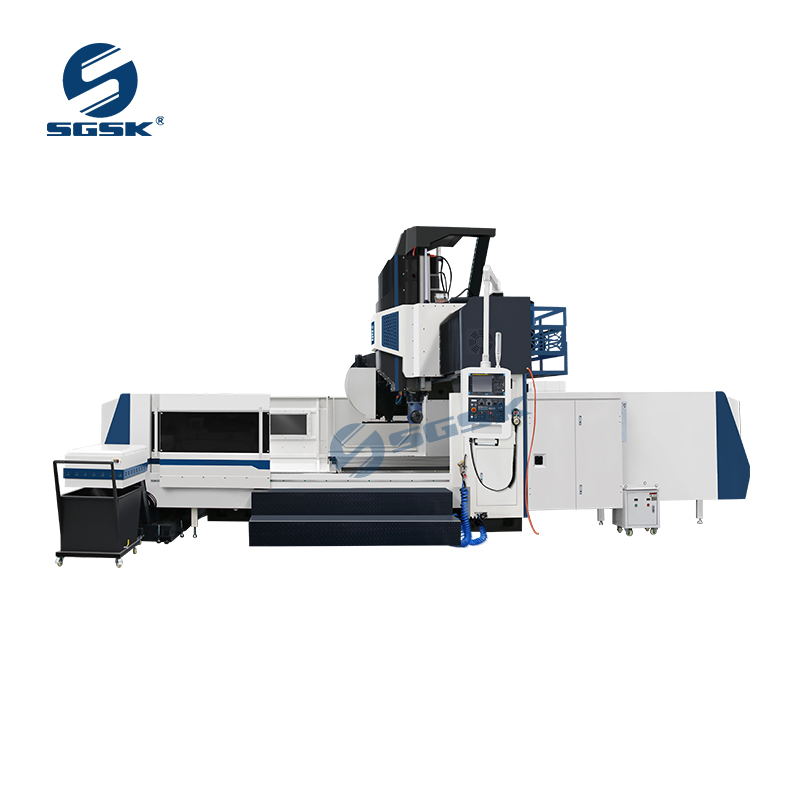

Product Main Technical Parameters
| SPECIFICATIONS | Units | GMC2518 |
| Table size（W*L） | mm | 1600*2700 |
| X axis travel | mm | 2500 |
| Y axis travel | mm | 1900 |
| Z axis travel | mm | 800 |
| Gantry width/passing height | mm | W：1900/H：1080 |
| Table load | t | 5.5 |
| Distance between spindle nose and table surface | mm | 200～1000 |
| T slot(number-width*pitch) | - | 9-22*180 |
| Spindle taper | - | BT50/190 |

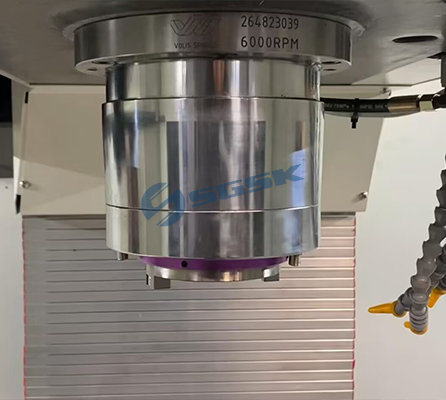

| Spindle speed | r/min | 6000 |
| Rapid traverse speed | m/min | 15 |
| Cutting feed speed | m/min | 10 |
| Main motor power | kw | 15/18.5 |

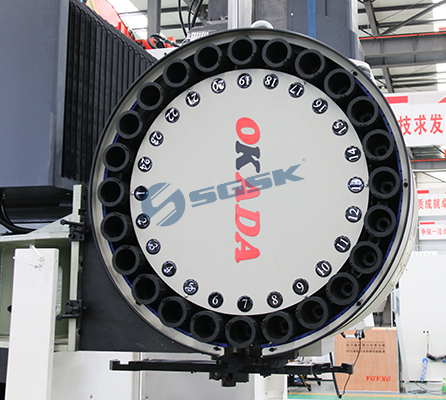

| Tool magazine | 圆盘Arm24 | |
| Positioning accuracy | mm | X/Y ±0.0075 Z ±0.015 |
| Repeat positioning accuracy | mm | ±0.005 |
| Overall dimension(L*W*H) | mm | 8200*4700*4300 |
| Machine weight(about) | t | 22 |
