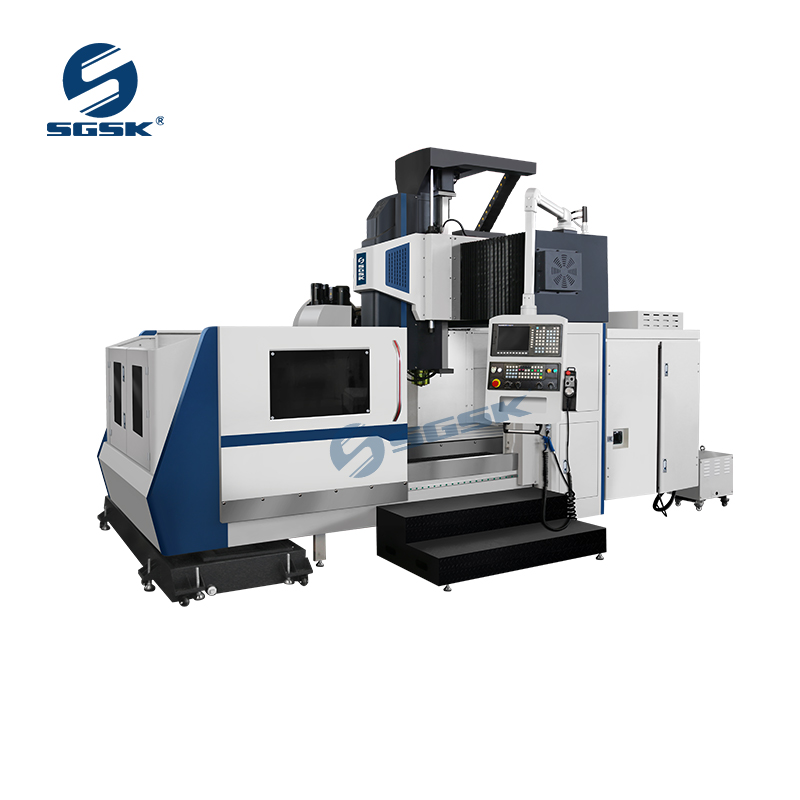

Product Main Technical Parameters
| Units | GMC2014 | |
| Table size（W*L） | mm | 1200*2100 |
| X axis travel | mm | 2000 |
| Y axis travel | mm | 1500 |
| Z axis travel | mm | 800 |
| Gantry width/passing height | mm | W：1500/H：1030 |
| Table load | t | 3.5 |
| Distance between spindle nose and table surface | mm | 150~950 |
| T slot(number-width*pitch) | - | 7-22*170 |
| Spindle taper | - | BT50 /190 |
| Spindle speed | r/min | 6000 |
| Rapid traverse speed | m/min | 15 |
| Cutting feed speed | m/min | 10 |
| Main motor power | kw | 15/18.5 |
| Tool magazine | 圆盘Arm24 | |
| Positioning accuracy | mm | X/Y ±0.0075 Z ±0.015 |
| Repeat positioning accuracy | mm | ±0.005 |
| Overall dimension(L*W*H) | mm | 6700*4200*4200 |
| Machine weight(about) | t | 17.5 |
