Product Model:

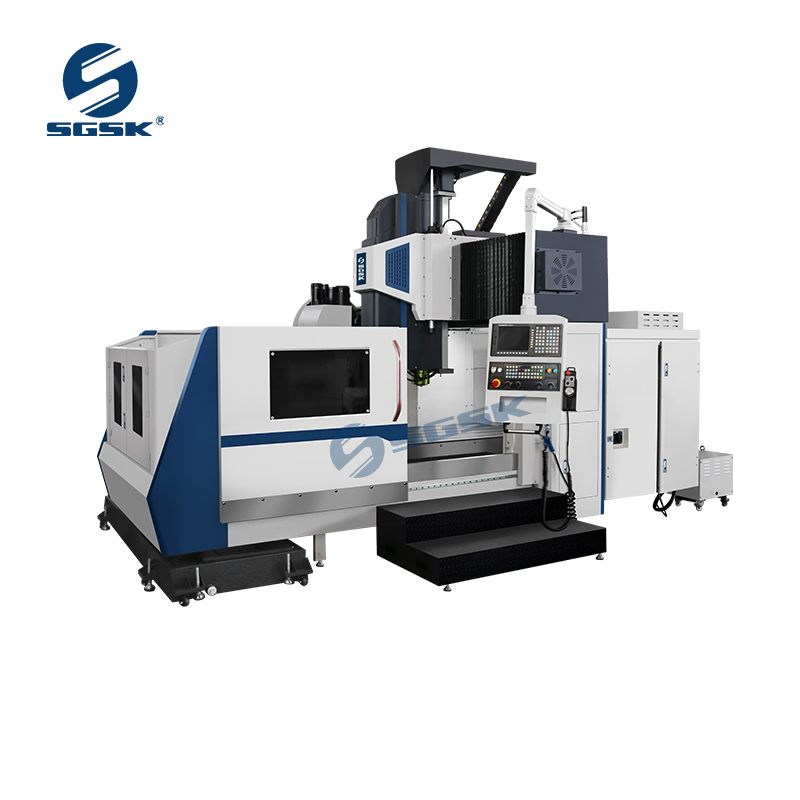

GMC2013 Gantry Machining Center

Product Main Technical Parameters

SpecificationsUnitsGMC2013
Table sizemm2300x1000
X axis travelmm2000
Y axis travelmm1300
Z axis travelmm600
Max. worktable loadkg3500
T slot(number-width-pitch)
7-18x140
Max. spindle speedrpm8000
Spindle tapermmBT40 (Optional:BT50 )
Main motor powerkw15/18.5
X/Y/Z rapid traverse speedm/min12/12/12
Cutting feed speedmm/min1-10000
Guide rail type
Linear rail
Distance from spindle axis to column surfacemm406.5
Distance between spindle nose and worktable surfacemm140-740
Positioning accuracymm±0.005
Repeat positioning accuracymm±0.004
Tool magazine
Arm 24
Max. tool diametermmφ78 (Adjacent)/ φ120(Apart)  Optional: φ112 (Adjacent)/ φ200(Apart)
Max.tool weightkg8 (Optional: 18)
Machine weightkg19000
Overall dimensionmm6000x3200x3600
