Product Model:

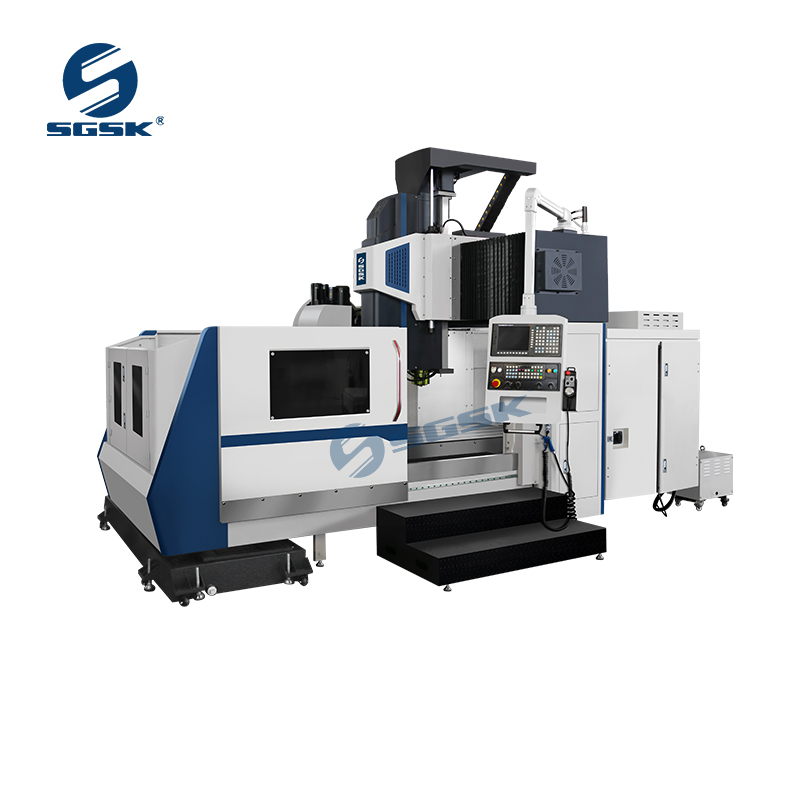

GMC1611 Gantry Machining Center

Product Main Technical Parameters

SpecificationsUnitsGMC1611
Table sizemm1800x800
X axis travelmm1600
Y axis travelmm1100
Z axis travelmm600
Max. worktable loadkg2500
T slot(number-width-pitch)
5-18x140
Max. spindle speedrpm8000
Spindle tapermmBT40 (Optional:BT50 )
Main motor powerkw15/18.5
X/Y/Z rapid traverse speedm/min12/12/12
Cutting feed speedmm/min1-10000
Guide rail type
Linear rail
Distance from spindle axis to column surfacemm406.5
Distance between spindle nose and worktable surfacemm140-740
Positioning accuracymm±0.005
Repeat positioning accuracymm±0.004
Tool magazine
Arm 24
Max. tool diametermmφ78 (Adjacent)/ φ120(Apart)Optional: φ112 (Adjacent)/ φ200(Apart)
Max.tool weightkg8 (Optional: 18)
Machine weightkg16000
Overall dimensionmm4500x3000x3600
