Product Main Technical Parameters
CNC Lathe Machine Standard Configuration:
Independent spindle
Linear rail Taiwan

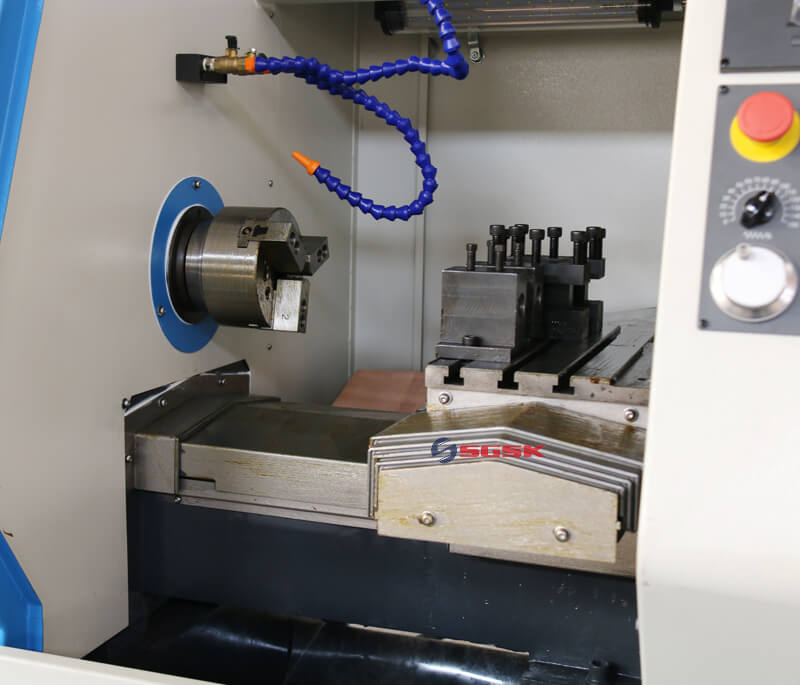

Collet Chuck

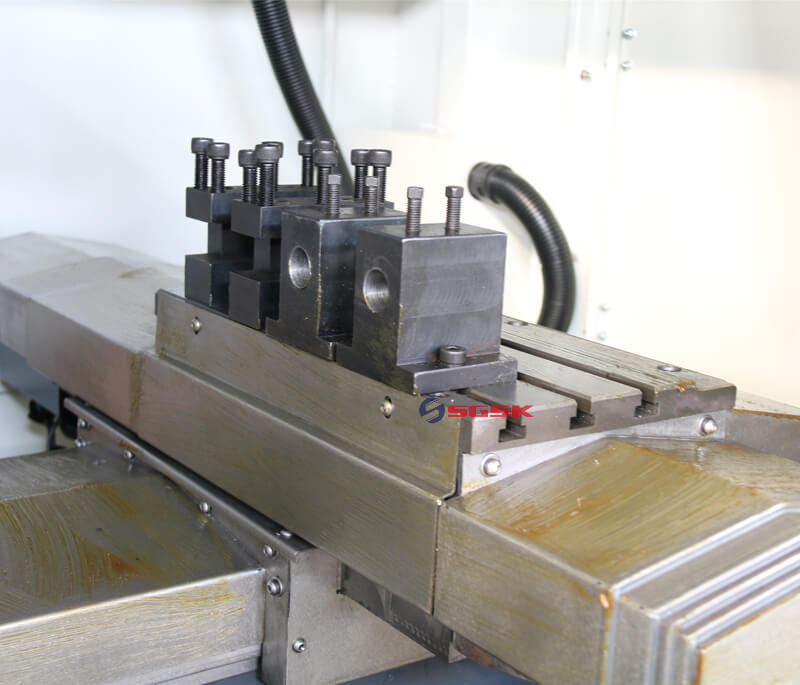

Gang type tool post
CNC Lathe Machine Specification:
| SPECIFICATIONS | Units | H46 |
| Swing over bed | mm | 460 |
| Swing over cross slide | mm | 140 |
| Distance between centers | mm | 330 |
| Spindle bore | mm | 56 |
| Spindle nose type | - | A2-5 |
| Spindle speed steps | - | Stepless |
| Spindle speed range | rpm | 3500 |
| Turret/tool post | - | Gang type |
| Tool size | mm | 25 x 25 |
| X axis travel | mm | 360 |
| Z axis travel | mm | 330 |
| X axis rapid traverse | mm/min | 15000 |
| Z axis rapid traverse | mm/min | 15000 |
| Main spindle motor | kw | 5.5 |
| Guide rail type | - | Linear rail |
| Machine weight | kg | 2200 |
| Overall dimension | mm | 2300x1800x1600 |
