Product Main Technical Parameters
CNC Lathe Machine Standard Configuration:
Independent spindle
Linear rail Taiwan

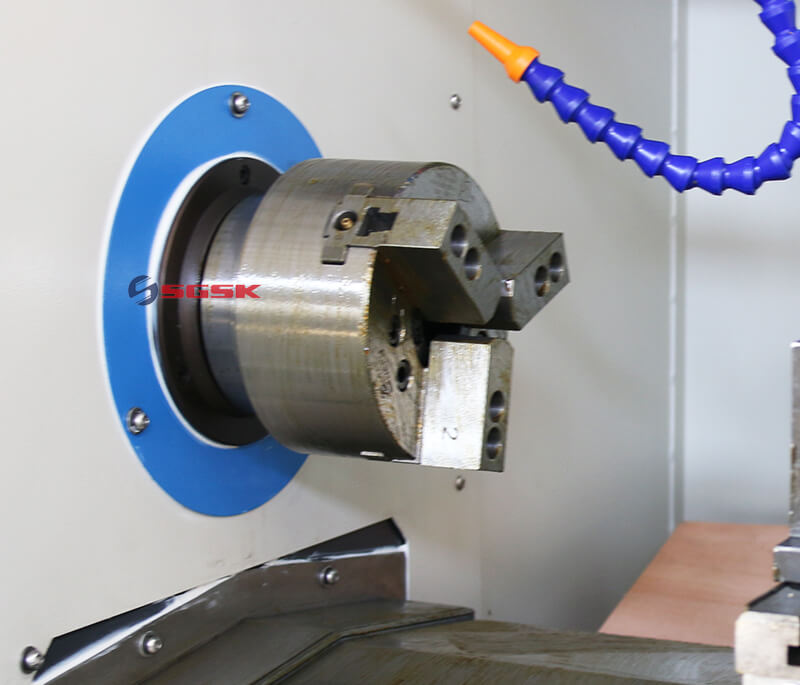

Collet Chuck

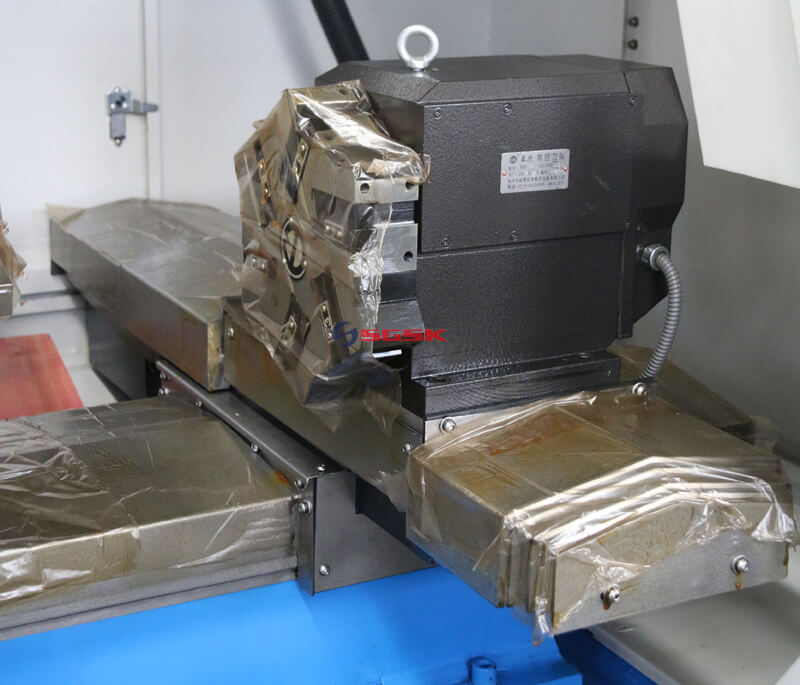

Gang type tool post
CNC Lathe Machine Specification:
| SPECIFICATIONS | Units | H36 |
| Swing over bed | mm | 360 |
| Swing over cross slide | mm | 110 |
| Distance between centers | mm | 250 |
| Spindle bore | mm | 48 |
| Spindle nose type | - | A2-5 |
| Spindle speed steps | - | Stepless |
| Spindle speed range | rpm | 2500(Optional:4000) |
| Turret/tool post | - | Gang type |
| Tool size | mm | 20 x 20 |
| X axis travel | mm | 340 |
| Z axis travel | mm | 250 |
| X axis rapid traverse | mm/min | 15000 |
| Z axis rapid traverse | mm/min | 15000 |
| Main spindle motor | kw | 4 |
| Guide rail type | - | Linear rail |
| Machine weight | kg | 1500 |
| Overall dimension | mm | 2000x1400x1580 |
