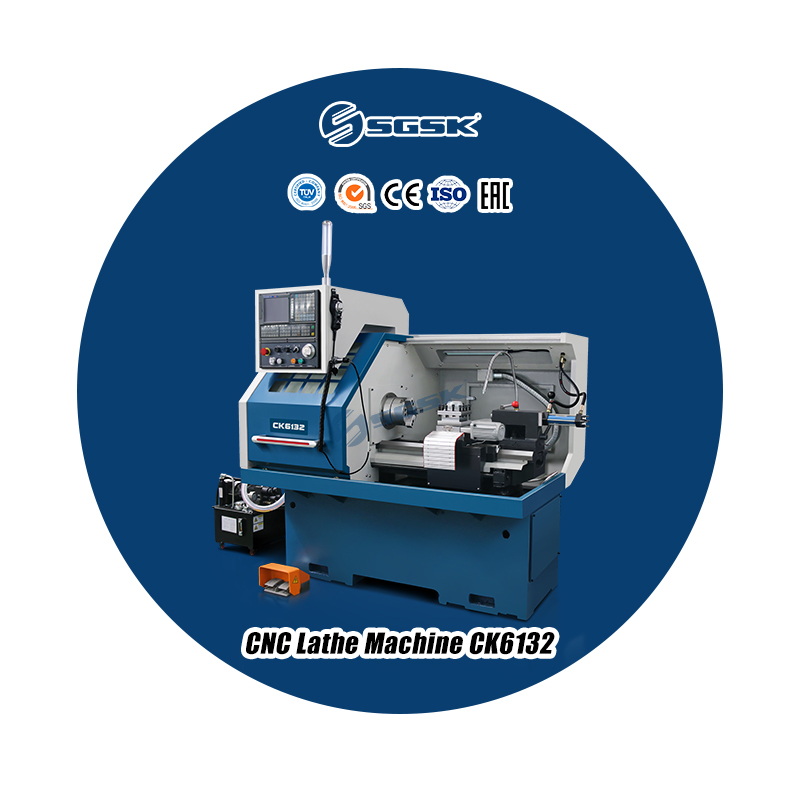

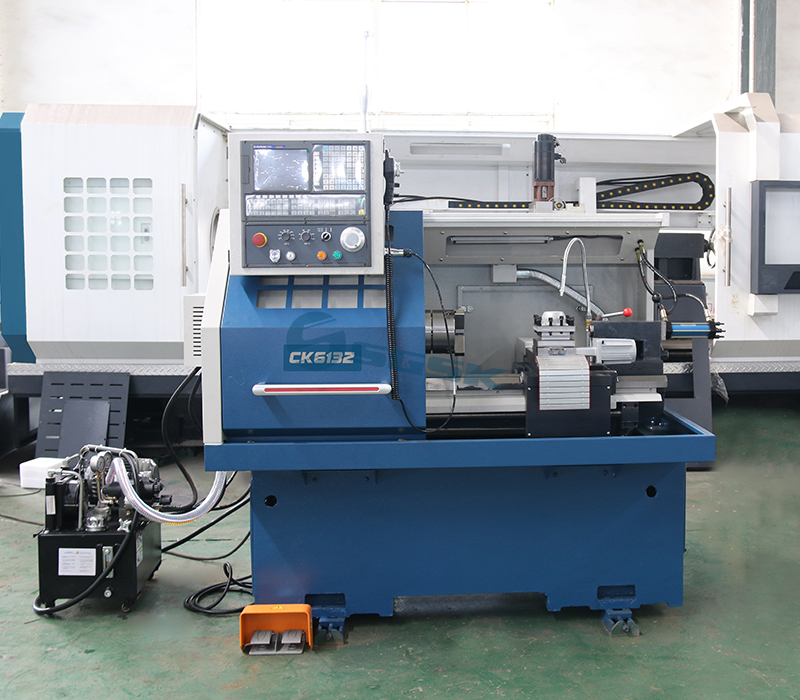

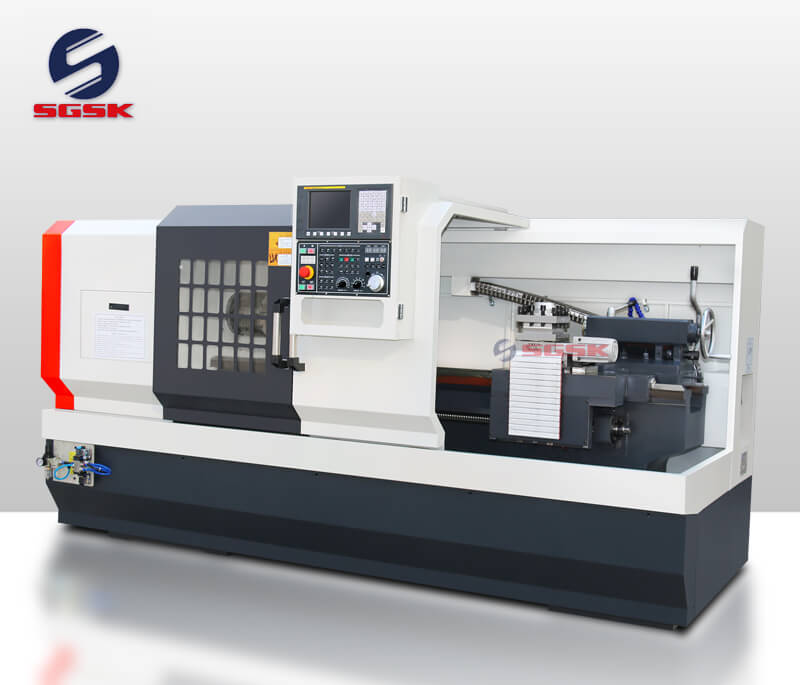

Flat Bed CNC Lathe Machine CK6132/500

This machine is widely used in processing and manufacture the electric appliance ,instrumentation industry ,automobile ,motorcycle ,fastener bearings ,photographic and film machinery ,hardware tools ,watches ,glasses ,stationery ,motors ,valves and gas pipe and other high precise and complex components .

It is the ideal high efficient equipment in the hardware machining industry .

Inquire Now Next Product

Features

CNC lathes, with their high precision, high efficiency, high automation, and powerful ability to process complex parts, have become the cornerstone of modern manufacturing.

They cover nearly every area of precision machining, from basic screws and nuts to cutting-edge aerospace components, and are a key force driving the development of industrial automation and intelligent manufacturing.

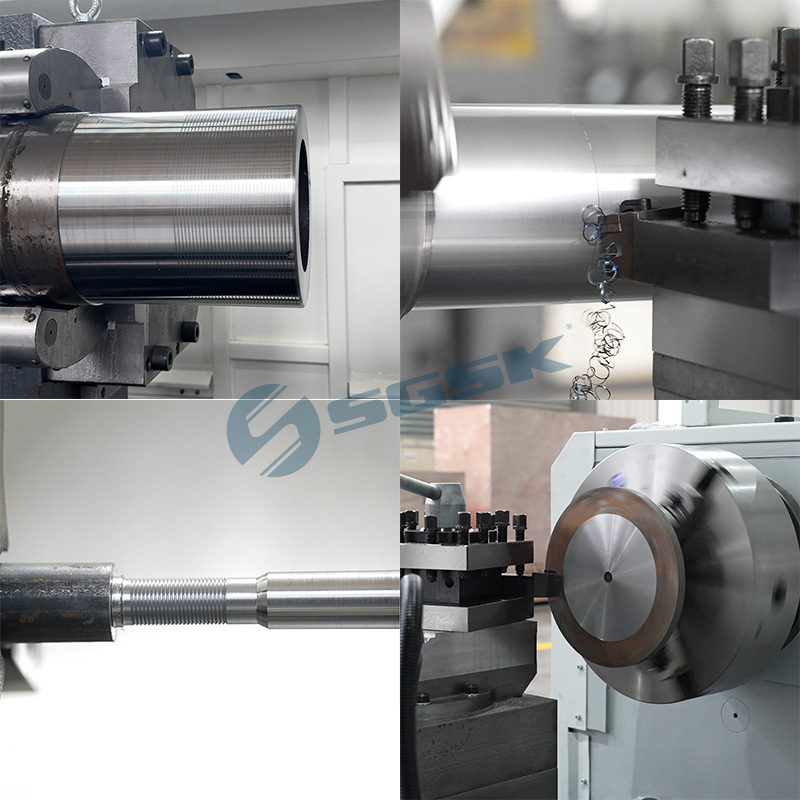

CK6120 CK6125 CNC Lathe Machine 2axis horizontal

Application

CNC lathes are widely used in manufacturing industries requiring high-precision rotating parts, primarily in the following areas:

1. Aerospace: Processing high-precision, high-strength, complex alloy parts such as engine blades, rocket nozzles, and landing gear components.

2. Automotive: Manufacturing key components such as engine shafts, pistons, brake discs, and steering gear parts.

3. Mold Manufacturing: Processing cores and cavities for injection and die-casting molds.

4. Medical Devices: Manufacturing parts requiring high biocompatibility and precision, such as artificial joints, surgical instruments, and dental implants.

5. Electronics: Processing cavities, connectors, and precision shafts for communications equipment.

6. General Machinery and Military: Manufacturing standard and custom parts such as drive shafts, lead screws, nuts, valves, and sleeves.

Product Main Technical Parameters

Product main technical specifications:

Specifications	Units	CK6132
Swing over bed	mm	320
swing over cross slide	mm	110
Distance between centers	mm	500/700
Spindle bore	mm	60
Spindle bore taper	-	MT6
Spindle nose type	-	A2-6
spindle speed steps	-	step less
spindle speed range	rpm	100-2000
Turret /tool post	-	Electric 4 position
Tool size	mm	20 x 20
X-axis travel	mm	170
Z-axis travel	mm	500
X-axis rapid traverse	mm/min	6000
Z-axis rapid traverse	mm/min	8000

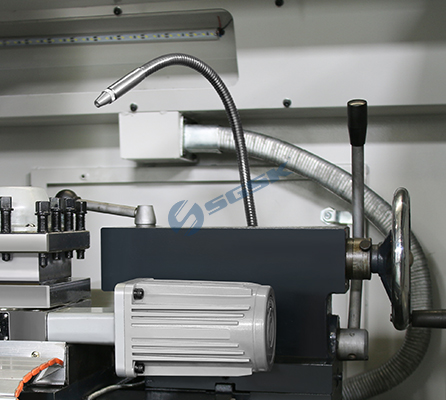

Tailstock quill diameter	mm	50
Tailstock quill taper	-	MT4
Tailstock quill travel	mm	90
Main spindle motor	KW	4
Coolant pump motor	KW	0.09
Machine weight	Kg	1200
Overall dimension (LWH)	mm	190012001700
