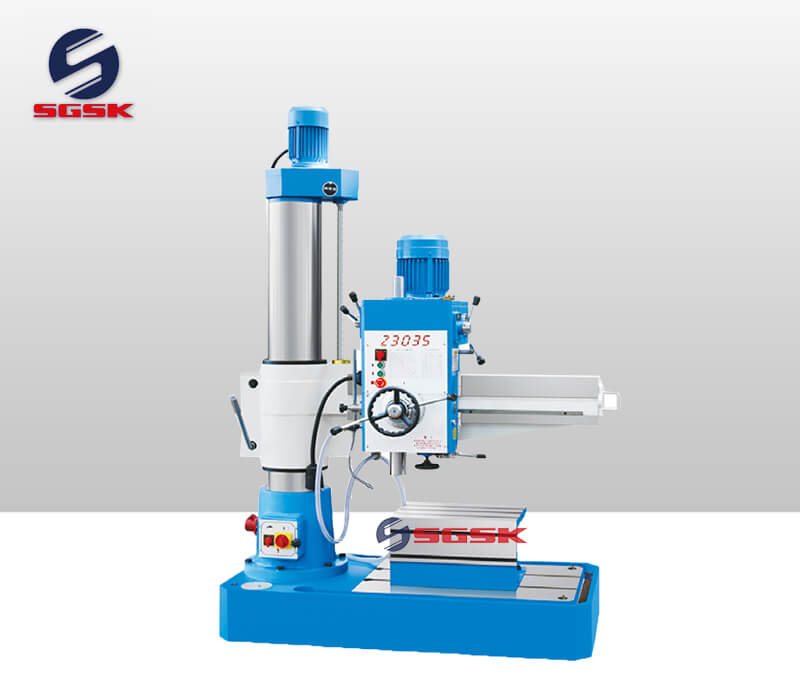

Product Main Technical Parameters
Radial Drilling Machine Performance Characteristics:
Mechanical transmission
Mechanical change speed
Mechanical damping
Automatic feed
Radial Drilling Machine Main Technical Specifications:
| Specifications | Z3035×10 |
| Max.drilling diameter(mm) | 35 |
| Distance from spindle nose to table surface(mm) | 300~1000 |
| Distance from spindle axis to column surface (mm) | 260~1200 |
| Spindle travel(mm) | 200 |
| Spindle taper | MT4 |
| Spindle speed range (rpm) | 75-1220 |
| Spindle speed steps | 6 |
| Spindle feed range (mm/r) | 0.10/0.16/0.22 |
| Spindle feed steps | 3 |
| Main motor power (kw) | 2.2 |
| Overall dimension(mm) | 1500×750×2150 |
| N/W(Kg) | 1200 |
