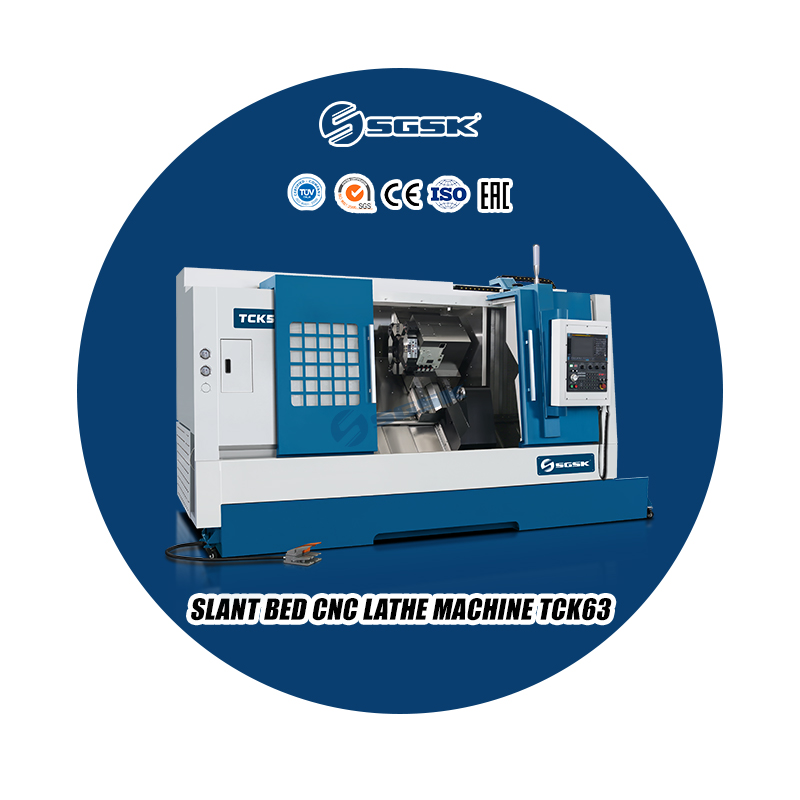

Product Main Technical Parameters
| SPECIFICATIONS | Units | TCK56 | TCK63 | TCK80 |
| Swing over bed | mm | 560 | 720 | 800 |
| Max. workpiece length | mm | 500 /1000 | 1000 /1500 /2000 /3000 | 1000/1500/2000/3000 |
| Max. cutting diameter | mm | 350 | 500 | 600 |
| Spindle bore | mm | 65 | 80 | 80 |
| Spindle nose type | - | A2-6（optional A2-8） | A2-11 | A2-11 |
| Spindle speed steps | - | Stepless | Stepless | Stepless |
| Spindle speed range | rpm | 50-4500 | 50-3500 | 50-3500 |
| Chuck | - | 8'' Hollow hydraulic chuck | 12'' Hollow hydraulic chuck | 12'' Hollow hydraulic chuck |
| Turret/tool post | - | Servo turret 8 position | Servo turret 12position | Servo turret 12 position |
| X axis travel | mm | 200 | 250 | 250 |
| Z axis travel | mm | 550/1050 | 1020/1520/2050/3050 | 1020/1520/2050/3050 |
| X axis rapid traverse | m/min | 30 | 12 | 12 |
| Z axis rapid traverse | m/min | 30 | 16 | 16 |
| Main motor power | kw | 11/15 | 15/18.5 | 18.5/22 |
| Tailstock quill taper | - | MT4（Opt.MT5） | MT5 | MT6 |
| Tailstock base travel | mm | 400/900 | 900/1400/1900/2900 | 900/1400/1950/2950 |
| Guide rail type | - | 45°斜床身线轨 45°Slant bed linear rail | ||
| Machine weight | kg | 3700/4500 | 5000/6000/7000/9000 | 6000/7000/8000/10000 |
