Product Main Technical Parameters

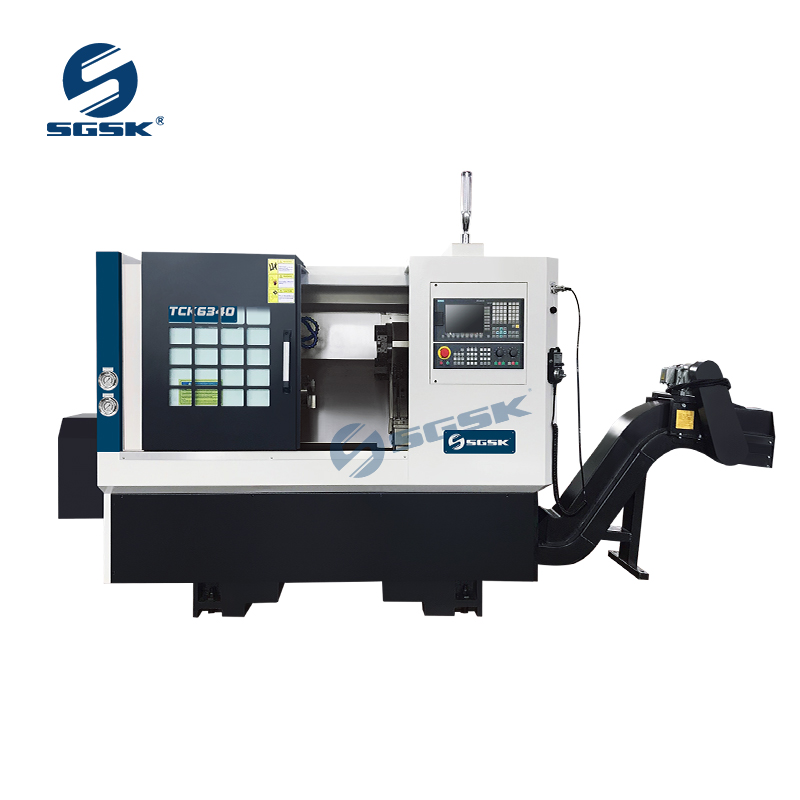

Slant Bed CNC Lathe Machine Main Features and Uses：
This machine is suitable for automobile, motorcycle, electron. Aerospace, military, oil and other industries. For rotary parts of conical surface, circular arc surface, surface and various inch screw thread, volume, high, high precision automatic processing by 45 degrees high rigidity of the whole bed, large torque of the spindle, the Taiwan rail line, ensure that the machine is high rigidity, near the center of the spindle operator, workpiece loading and unloading more convenient.
Slant Bed CNC Lathe Machine Main Technical Specification：
| Specification | Unit | TCK6336 |
| Maximum screw diameter | mm | 390 |
| Max.swing over cross slide | mm | 130 |
| Max.workpiece length | mm | 200 |
| X/z travel | mm | 400/300 |
| Spindle unit | mm | Φ140/Φ170 |
| Spindle nose | A2-5 | |
| Spindle bore | mm | Φ48/Φ56 |
| Spindle drawn tube diameter | mm | Φ40/Φ45 |
| Spindle speeds | rpm | 4000/3500 |
| Chuck size | in | 6/8 |
| Spindle motor | kw | 3.7/5.5 |
| X/Z axis Positioning accuracy | mm | 0.016/0.016 |
| X/Z axis repeatability | mm | 0.006/0.006 |
| X/Z feed motor torque | N.m | 6/6 |
| X/Z feed motor power | kw | 1.5 |
| X/Z fast feed speed | m/min | 18/15 |
| Tool post type | Gang type tool post | |
| The tool body size | mm | 20*20 |
| Guide form | Integral type 45° | |
| Total power capacity | KVA | 9/11 |
| Machine dimensions(L*W*H) | mm | 2200*1340*1710 |
| N.W. | kg | 2500 |
