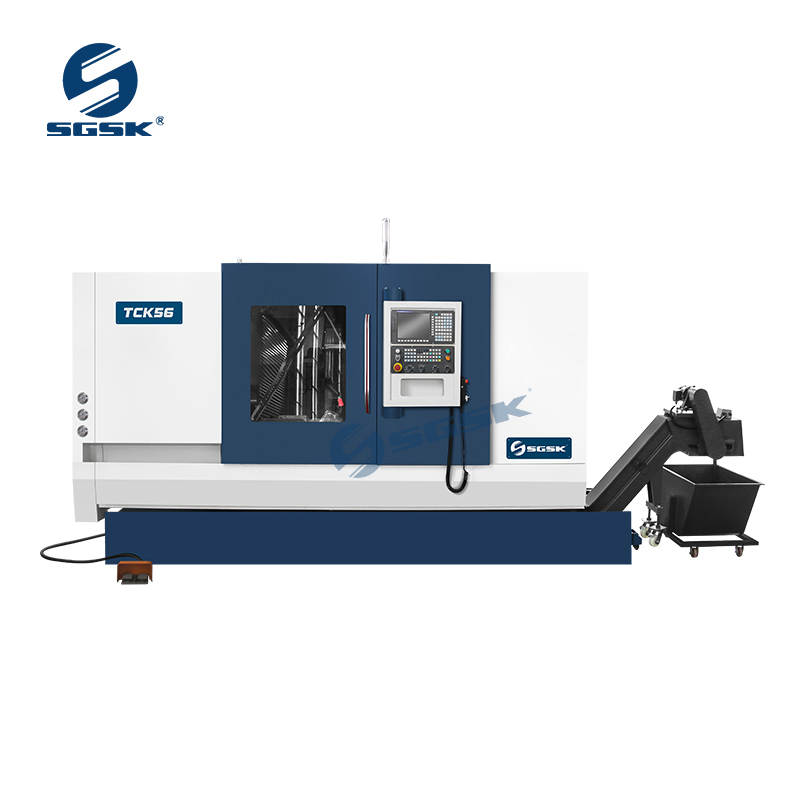

Product Main Technical Parameters
| SPECIFICATIONS | Units | TCK56/500 | TCK56/1000 |
| Swing over bed | mm | 560 | 560 |
| Swing over cross slide | mm | 350 | 350 |
| Distance between centers | mm | 500 | 1000 |
| Max. Turning diameter | mm | 350 | 350 |
| Std. Cutting diameter | mm | 280 | 280 |
| Spindle bore | mm | 65 | 65 |
| Bar capacity | mm | 50 | 50 |
| Spindle nose type | - | A2-6（可选Opt.A2-8） | A2-6（可选Opt.A2-8） |
| Spindle speed steps | - | 无级Stepless | 无级Stepless |
| Spindle speed range | rpm | 50～4500 | 50～4500 |
| Chuck | - | 8寸液压卡盘（可选10寸）8'' hydraulic chuck (Opt. 10'') | |
| Turret/tool post | - | 8工位伺服刀塔 Servo turret 8 position | |
| Tool size | mm | 25*25 | 25*25 |
| X axis travel | mm | 200 | 200 |
| Z axis travel | mm | 550 | 1050 |
| X axis rapid traverse | mm/min | 30 | 30 |
| Z axis rapid traverse | mm/min | 30 | 30 |
| Main motor power | kw | /11/15 | /11/15 |
| Tailstock quill taper | - | MT4（可选Opt.MT5） | MT4（可选Opt.MT5） |
| Tailstock quill travel | mm | 无 | 无 |
| Tailstock travel | mm | 400 | 900 |
| Guide rail type | - | 斜床身线轨 Slant bed linear rail | |
| Machine weight | kg | 3700 | 4500 |
| Overall dimension(L*W*H) | mm | 2800*1860*1850 | 3570*1860*1850 |
