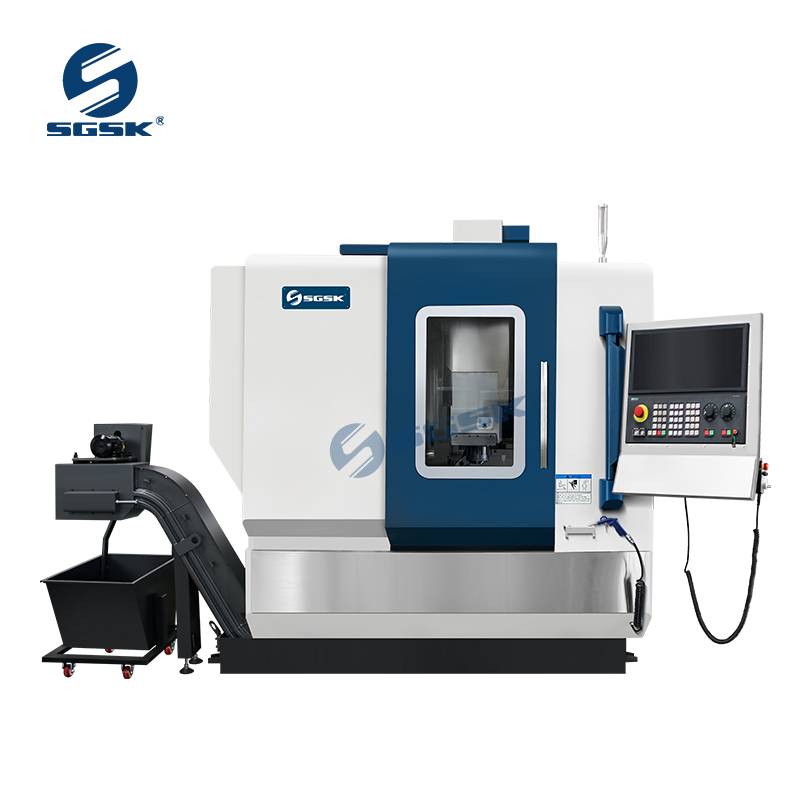

5 Axis CNC Machining Center greatly shortens auxiliary time

With its absolute technological advantages of being "complex, precise, efficient, and integrated," the five-axis CNC machining center has become the core equipment for high-end intelligent manufacturing. It is the ultimate solution for machining parts with complex spatial curved surfaces and high precision requirements, and directly reflects a country's competitiveness in the field of high-end manufacturing.

4.

1. Achieve one-time forming of complex geometries:

This is its core advantage.

By continuously adjusting the angle between the tool axis and the workpiece during continuous movement, it is possible to machine parts with complex spatial curved surfaces and irregular shapes, such as impellers, turbines, and precision mold cavities, in a single operation—features that vertical or horizontal machining centers cannot achieve.

2. Significantly reduce clamping times, improving accuracy and efficiency:

Traditional machine tools require multiple re-clampings to complete machining multiple surfaces of a workpiece.

However, a five-axis machining center, through a rotating worktable or milling head, can achieve "one-clamp, five-surface machining."

This not only greatly shortens auxiliary time and improves efficiency, but more importantly, it avoids datum conversion errors caused by multiple clampings, thus ensuring extremely high overall machining accuracy of the parts, especially complex geometric tolerances.

3. Improve machining quality and surface finish:

By using the side edge of the tool rather than the tool tip for cutting, and always maintaining the optimal cutting angle, excessive instantaneous cutting force at the tool tip can be effectively avoided, reducing tool wear and achieving better surface finish.

4.Effectively avoids interference and optimizes toolpaths: When machining deep cavities, steep sidewalls, or negative angle structures, five-axis CNC can adjust the tool axis direction to allow shorter tools to extend into the machining area, avoiding collisions and interference between the tool, tool holder, and workpiece.

Using shorter tools also increases rigidity and reduces vibration, allowing for higher cutting parameters and further improving machining efficiency.

5.Simplifies complex processes and shortens production cycles: Processes that originally required multiple machine tools, multiple clamping operations, and complex tooling fixtures can be completed on a single machine tool, greatly simplifying the process flow and shortening the entire production cycle from design to finished product

Five-axis CNC machining centers are a "killer app" for solving high-end manufacturing challenges, primarily used in the following fields with extremely high requirements for complexity, precision, and integration:

1.Aerospace Industry:

This is a traditional core application area for five-axis technology. Used for machining critical parts with numerous free-form surfaces, such as integral bladed disks and blades for aircraft engines, and titanium alloy fuselage frames.

2.Precision Mold Manufacturing:

Used to manufacture complex cavities and core surfaces for automotive body panel molds and injection molds, enabling high-quality surface finishing directly and eliminating a significant amount of subsequent manual polishing work.

3.Military and Shipbuilding Industry:

Machining parts with complex hydrodynamic profiles, such as propellers, turbine runners, and missile hulls.

4.Medical Device Industry:

Manufacturing products with extremely high requirements for biocompatibility surfaces, such as artificial joints (hip and knee joints), bone implants, and surgical robot components.

5.High-Precision General Engineering and Energy:

Used to produce complex components such as impellers, compressor rotors, automotive engine prototypes, and various precision testing equipment.
