Product Main Technical Parameters
| Specifications | Units | CK46P |
| Max.swing over bed | mm | 360 |
| Max. Swing over cross slide | mm | 110 |
| Max. Processing length | mm | 330 |
| Cross slide length | mm | 600 |
| Distance between cross slide and spindle axis | mm | 55 |
| Spindle nose | A2-5 | |
| Spindle speed range | R/min | 50-5000 |
| Spindle bore | mm | 56 |
| Bar capacity | mm | 45 |
| Spindle motor power | kw | 7.5 |
| X/Z axis travel | mm | 410/330 |

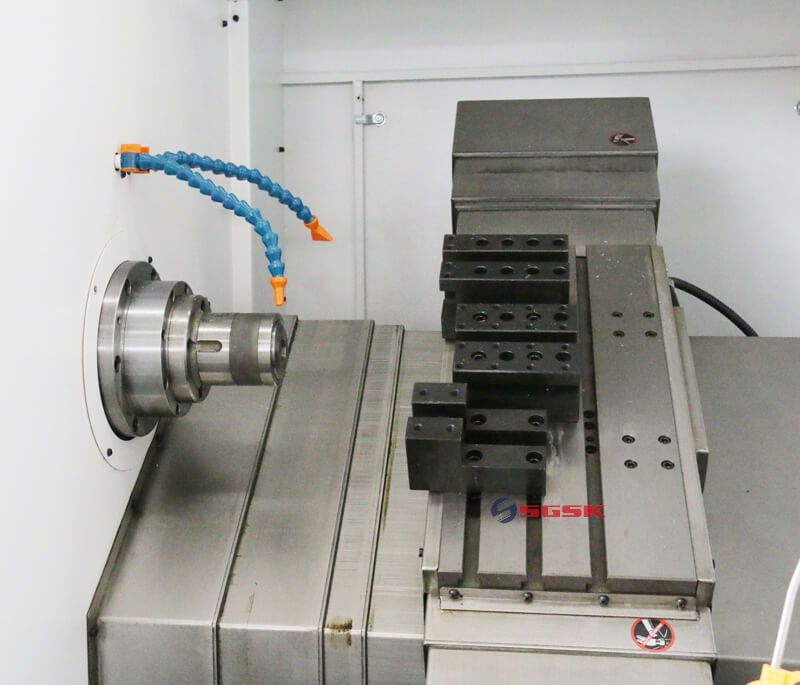

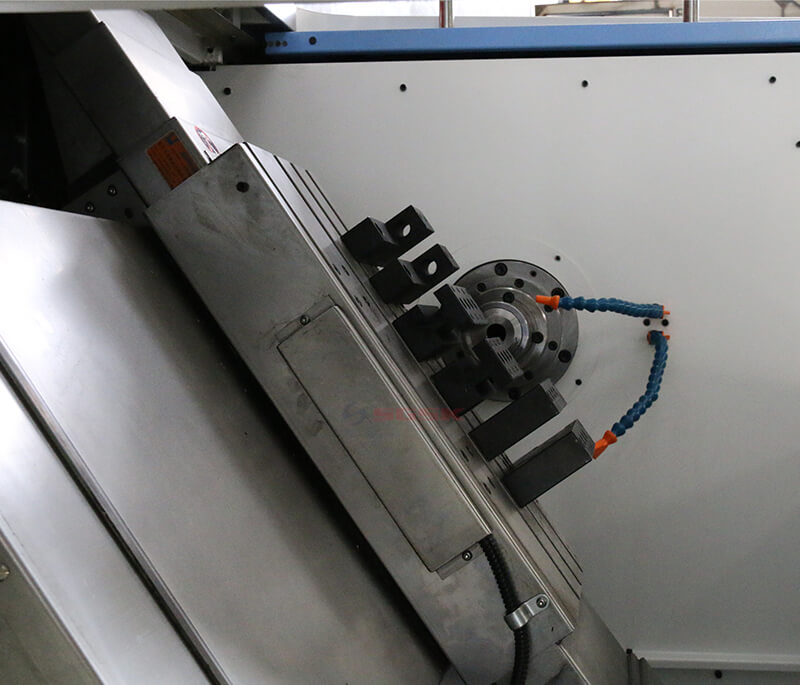

| Tool post type | Gang type tool post | |
| X/Z axis positioning accuracy | mm | 0.006 |
| X/Z axis repositioning accuracy | mm | 0.003 |
| X/Z rapid traverse | Mm/min | 24000 |
| Machine dimension(LxWxH) | mm | 2400x1700x1600 |
| Net weight | Kg | 2800 |
