Product Model:

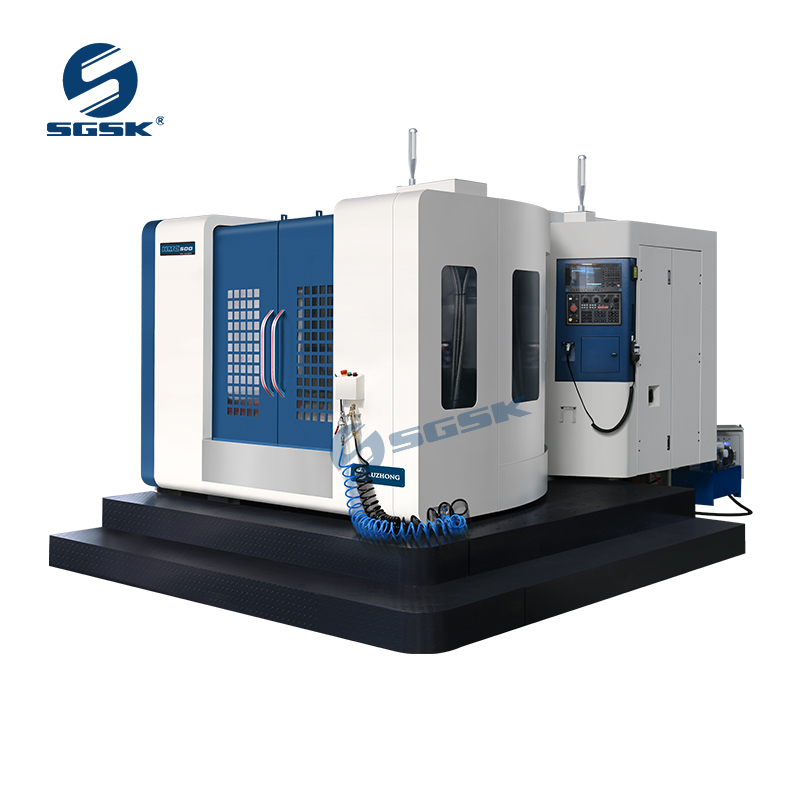

HMC800 CNC Horizontal Machining Center

Product Main Technical Parameters


UnitsHMC500HMC630HMC800HMC1000
Table sizemm500*500630*630800*8001000*1000
X axis travelmm800105013001600
Z axis travelmm60090010001000
Y axis travelmm60070010001000
Distance from  spindle center to table surfacemm100-750120-870150-1150120- 1120
Distance between spindle nose and table centermm150-950130-1030200-1200200- 1200
Table quantitypcs1111
T slot(number-width*pitch)mm5-18*1005-22*1255-22*1255-22*125
Max. worktable loadkg50080015002000
Table indexing°1°*3601°*3601°*3601°*360
Maximum speed of tabler/min10101010
Main motor powerkw11月15日15/18.515/18.515/18.5
Spindle taper
BT40BT50-190BT50-190BT50-190
Max. spindle speedrpm8000600060006000
Cutting feed speedmm/min1-100001-100001-100001-10000
Rapid traverse speedm/min36/32/3236 / 20/ 2424 / 20/ 2424 / 20/ 24

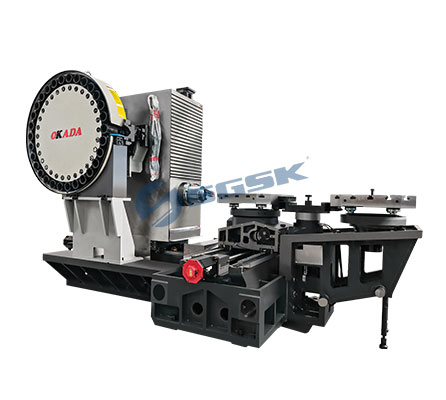

Tool magazine
圆盘Arm24圆盘Arm30圆盘Arm30圆盘Arm30
Max. tool diametermm112/200112/200112/200112/200
Max. tool lengthmm400400400400
Max. tool weightkg18181818
Tool change time (tool to tool)sec3333
Machine minimum setting unitmm0.0010.0010.0010.001
X,Y,Z axis positioning accuracymm0.010.0120.0120.012
X,Y,Z axis repeat positioning accuracymm0.0050.0080.0080.008
B axis positioning accuracy10″10″10″10″
B axis repeat positioning accuracy5”5″5″5″
Machine weightkg8500120001700019000
Overall dimension(L*W*H)mm4650*3250*30004850*3600*32005050*3800*33005300*3900*3300
