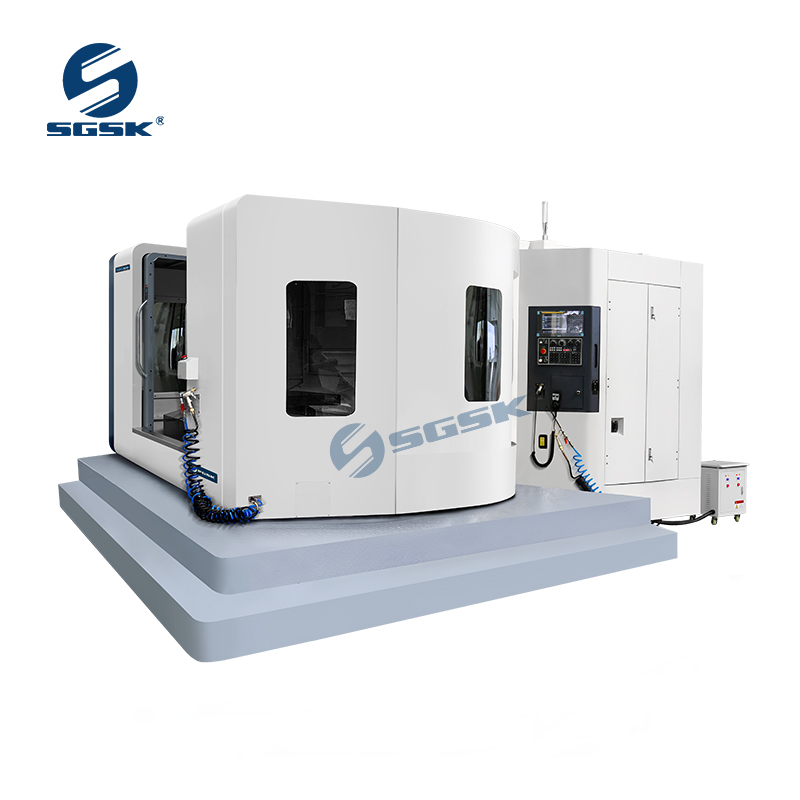

HMC1000 CNC Horizontal Machining Center(Double worktables) Manufacturer China

Home > Products > Horizontal machining center

Product Model：

Inquire Now Next Product

Product Main Technical Parameters

	Units	HMC630	HMC800	HMC1000
Table size	mm	630*630	800*800	1000*1000
X axis travel	mm	1050	1300	1600
Z axis travel	mm	900	1000	1000
Y axis travel	mm	700	1000	1000
Distance from spindle center to table surface	mm	120-870	150-1150	120- 1120
Distance between spindle nose and table center	mm	130-1030	200-1200	200- 1200
Table quantity	pcs	2	2	2
T slot(number-width*pitch)	mm	5-22*125	5-22*125	5-22*125
Max. worktable load	kg	800	1500	1500
Table indexing	°	1°*360	1°*360	1°*360
Maximum speed of table	r/min	10	10	10
Main motor power	kw	15/18.5	15/18.5	15/18.5
Spindle taper		BT50-190	BT50-190	BT50-190
Max. spindle speed	rpm	6000	6000	6000
Cutting feed speed	mm/min	1-10000	1-10000	1-10000
Rapid traverse speed	m/min	36 / 20/ 24	24 / 20/ 24	24 / 20/ 24
Tool magazine		圆盘Arm 30	圆盘Arm 30	圆盘Arm 30
Max. tool diameter	mm	112/200	112/200	112/200
Max. tool length	mm	400	400	400
Max. tool weight	kg	18	18	18
Tool change time (tool to tool)	sec	3	3	3
Machine minimum setting unit	mm	0.001	0.001	0.001
X,Y,Z axis positioning accuracy	mm	0.012	0.012	0.012
X,Y,Z axis repeat positioning accuracy	mm	0.008	0.008	0.008
B axis positioning accuracy	″	10″	10″	10″
B axis repeat positioning accuracy	″	5″	5″	5″
Machine weight	kg	15000	20000	22000
Overall dimension(LWH)	mm	620041003200	660043003300	700045003300
