Product Main Technical Parameters
| Specifications | Units | TXK611 |
| Spindle bore | mm | 155 |
| Spindle taper | BT | BT50 |
| Spindle speed | r/min | 1-3000（servo drive） |

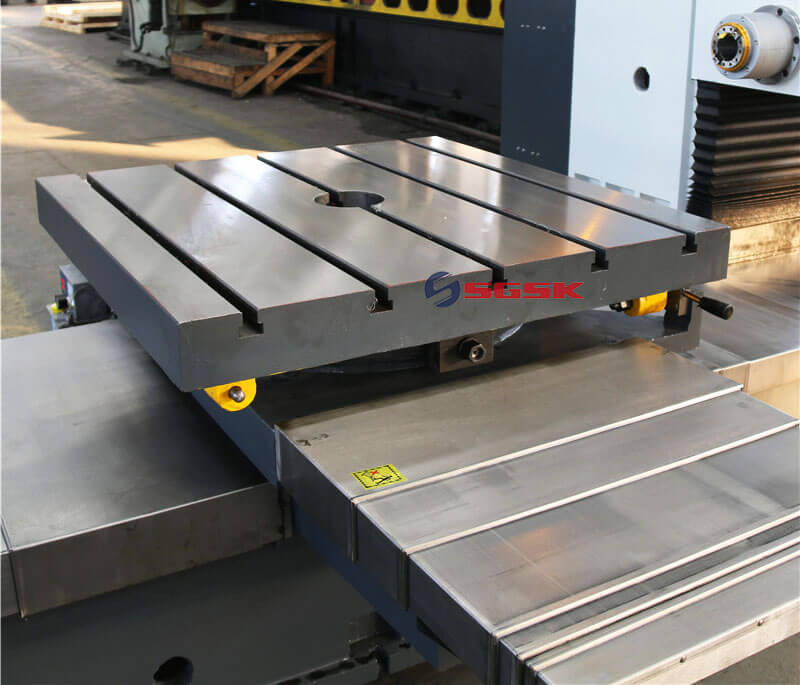

| Table size (L*W) | mm | 1100x900 Optional 1000*1000 Pneumatic table or 4 axis |
| Table longitudinal travel(Z axis) | mm | 1200 |
| Table cross travel（X axis） | mm | 1000 |
| Spindle box travel（Yaxis） | mm | 900 |
| Axial travel of spindle | mm | Optional telescopic spindle |
| Table feed speed | mm/min | 1-2500mm/min |
| Spindle motor power | kw | 15 |
| Positioning accuracy | mm | ±0.025 |
| Repeat positioning accuracy | mm | ±0.015 |
| CNC control system | - | KND/GSK |
| Weight | kg | 9000 |
| Overall dimensions | mm | 4000×3000×3000 |
