Product Main Technical Parameters
Slant Bed CNC Lathe Machine Features:
45 degrees slant bed CNC lathe
Higher accuracy Taiwan linear
Chip conveying capacity is large and convenient, customer could choose chip conveying in the front or in the back
Screw pre-stretching structure
Gang type tool post

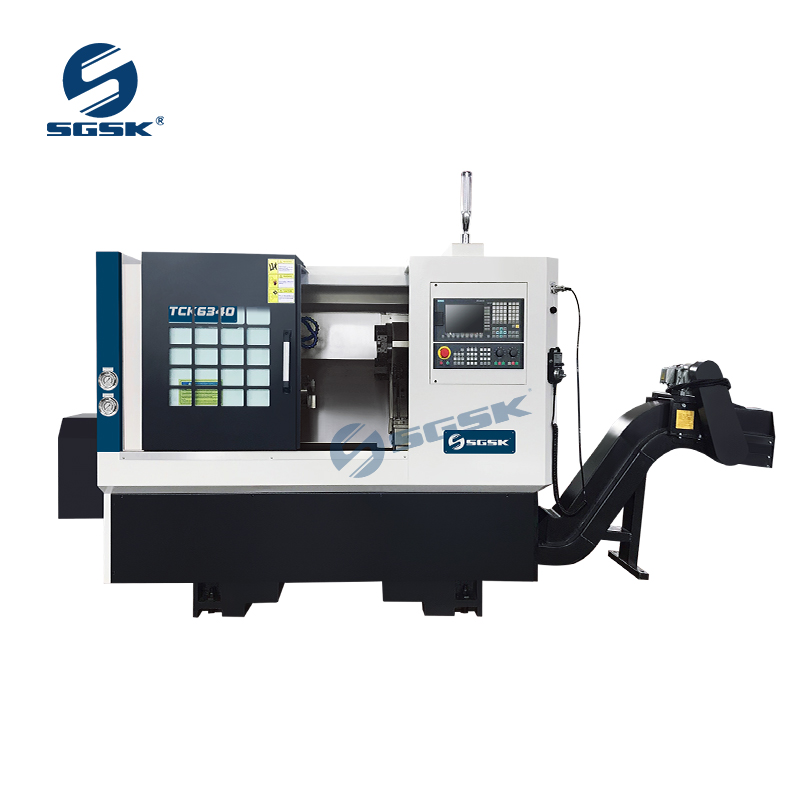

TCK6340 Slant Bed CNC Lathe Machine Main Specification:
| SPECIFICATIONS | Units | TCK6340 |
| Swing over bed | mm | 400 |
| Swing over cross slide | mm | 140 |
| Distance between centers | mm | 200 |
| Spindle bore | mm | 48 |
| Spindle nose type | - | A2-5 |
| Spindle speed steps | - | Stepless |
| Spindle speed range | rpm | 3500 |
| Turret/tool post | - | Gang type |
| Tool size | mm | 20 x 20 |
| X axis travel | mm | 400 |
| Z axis travel | mm | 300 |
| X axis rapid traverse | mm/min | 18000 |
| Z axis rapid traverse | mm/min | 18000 |
| Main spindle motor | kw | 5.5 |
| Guide rail type | - | Linear rail |
| Machine weight | kg | 2300 |
| Overall dimension | mm | 2200x1600x1780 |
