Product Main Technical Parameters
CNC Lathe Machine Main Performance Characteristics：
Widening high stability bed
Two gear spindle speed,stepless in gear
Wider layor board
Intergrated automatic lubrication system
CNC Lathe Machine Application：
The machine is suitable to process all kinds of small and middle-sized shaft and plate workpiece,and could also turn various threads ,circle arc ,circle cone ,inside and outside surface of revolved body .This machine is widely used in sanitary ,value ,electrical appliance ,instrument ,automobile ,motor cycle ,bearing and so on.
CNC Lathe Machine Feature:
Guide way width 400mm
CNC Lathe Machine Specifications:
| SPECIFICATIONS | Units | CK6140D |
| Swing over bed | mm | 400 |
| Swing over cross slide | mm | 180 |
| Distance between centers | mm | 750/1000/1500/2000 |

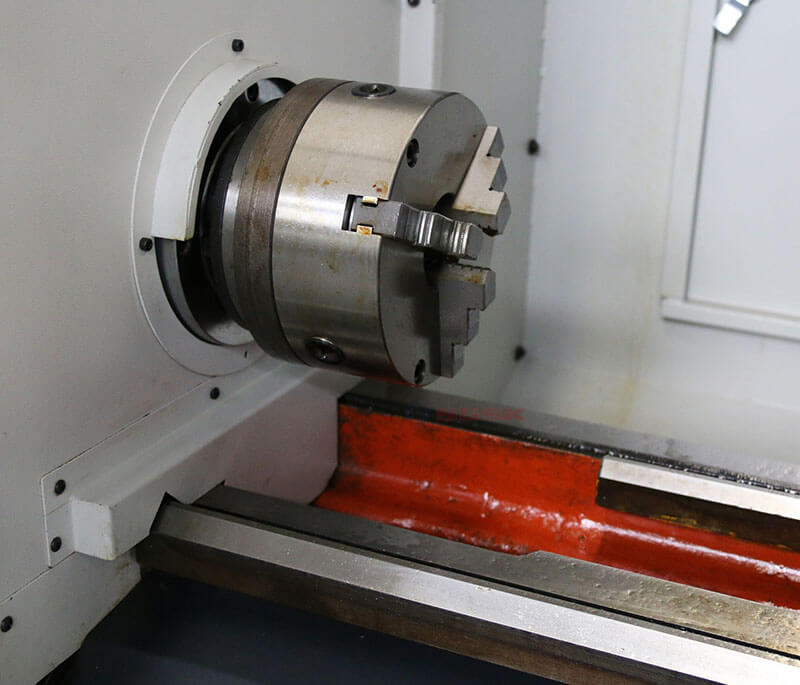

| Spindle bore | mm | 52 |
| Spindle bore taper | - | MT6 |
| Spindle nose type | - | C6 |
| Spindle speed steps | - | Manual 2 steps |
| Spindle speed range | rpm | L:70-700 H:160-1600 |

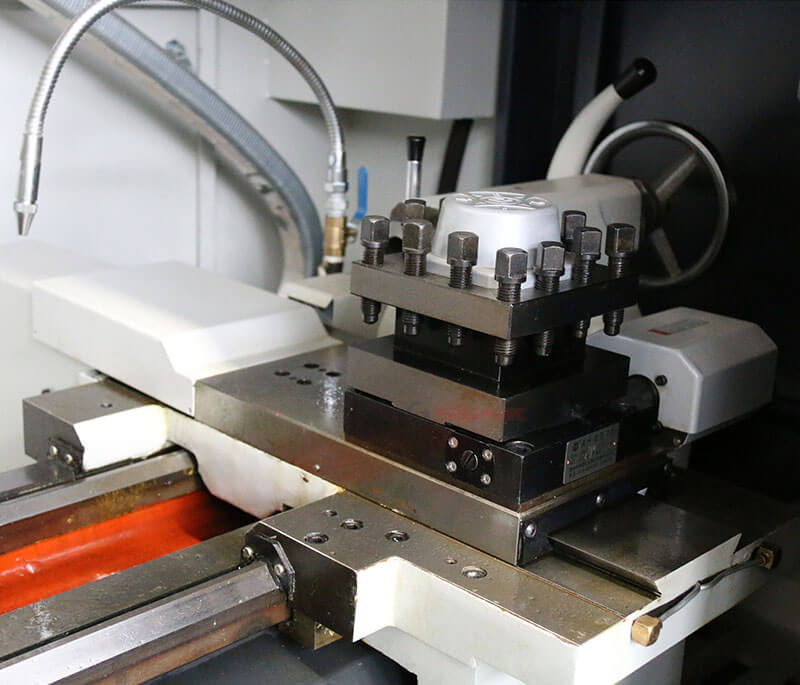

| Turret/tool post | - | Electric 4 position |
| Tool size | mm | 20 x 20 |
| X axis travel | mm | 240 |
| Z axis travel | mm | 750/1000/1500/2000 |
| X axis rapid traverse | mm/min | 6000 |
| Z axis rapid traverse | mm/min | 8000 |
| Tailstock quill diameter | mm | 65 |
| Tailstock quill taper | - | MT4 |
| Tailstock quill travel | mm | 140 |
| Main spindle motor | kw | 5.5 |
| Coolant pump motor | kw | 0.125 |
| Weight for 750 | kg | 1700 |
| Weight for 1000 | kg | 1800 |
| Weight for 1500 | kg | 2000 |
| Weight for 2000 | kg | 2200 |
| Dimension for 750 | mm | 2200x1600x1700 |
| Dimension for 1000 | mm | 2600x1600x1700 |
| Dimension for 1500 | mm | 3000x1600x1700 |
| Dimension for 2000 | mm | 3500x1600x1700 |
