Product Model:

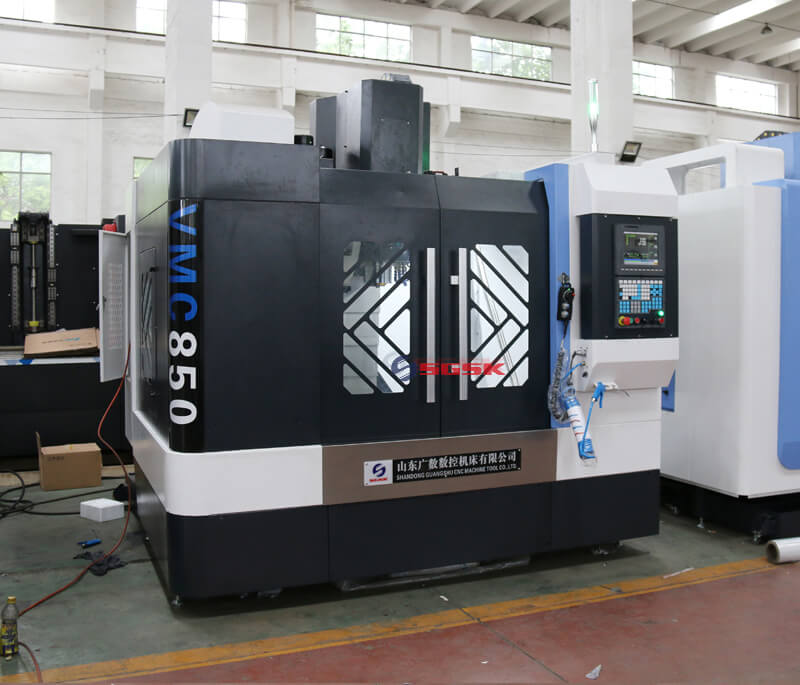

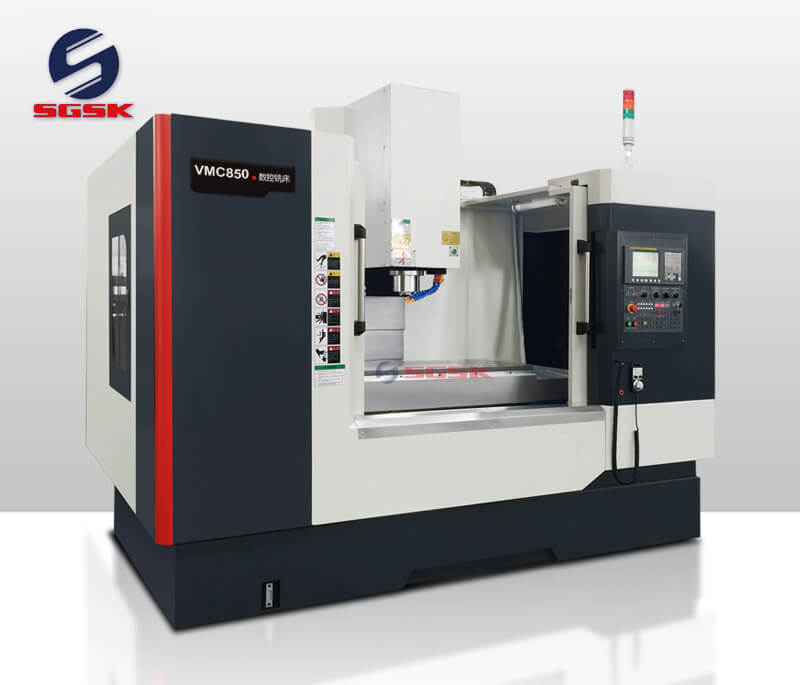

VMC850 Vertical Machining Center

Product Main Technical Parameters

Vertical Machining Center Features:

High quality resin sand

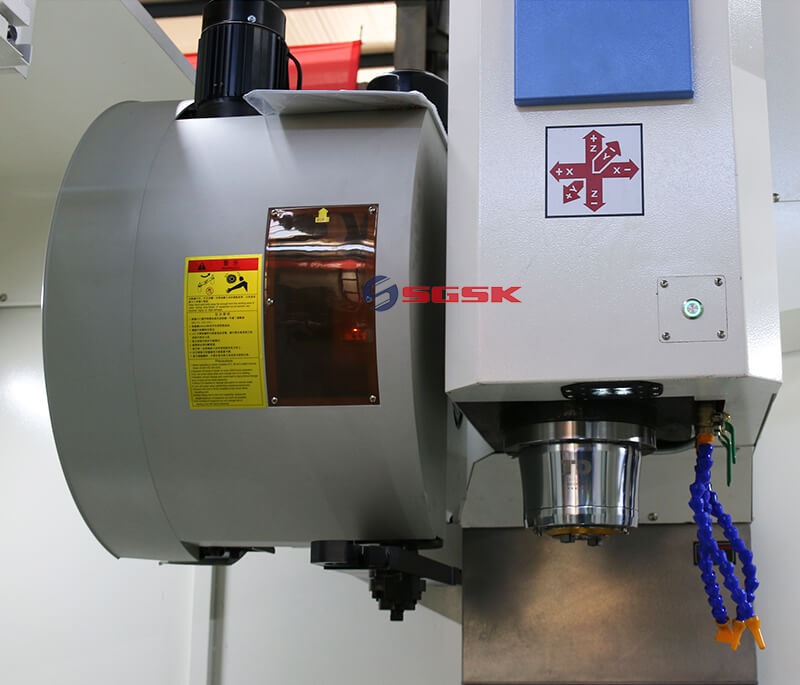

Taiwan spindle

Taiwan pressure cylinder

Automatic lubrication system

Chip conveyor at optional

Vertical Machining Center Application:

This VMC is suitable for mechanical processing and mold making .And it can asapt to the processing requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling ,tapping ,boring ,etc.

Vertical Machining Center Main Technical Parameters:

Table sizemm1000x500
X axis travelmm800
Y axis travelmm500
Z axis travelmm500
Max. worktable loadkg500
T slot(number-width-pitch)
Max. spindle speedrpm8000(Optional:10000 )
Spindle tapermmBT40
Main motor powerkw7.5/11
X/Y/Z rapid traverse speedm/min24/24/20 (Optional:48/48/36 )
Cutting feed speedmm/min1-8000
Guide rail type
Linear rail
Distance from spindle axis to column surfacemm525
Distance between spindle nose and worktable surfacemm130-630
 Positioning accuracymm±0.0075
Repeat positioning accuracymm±0.005

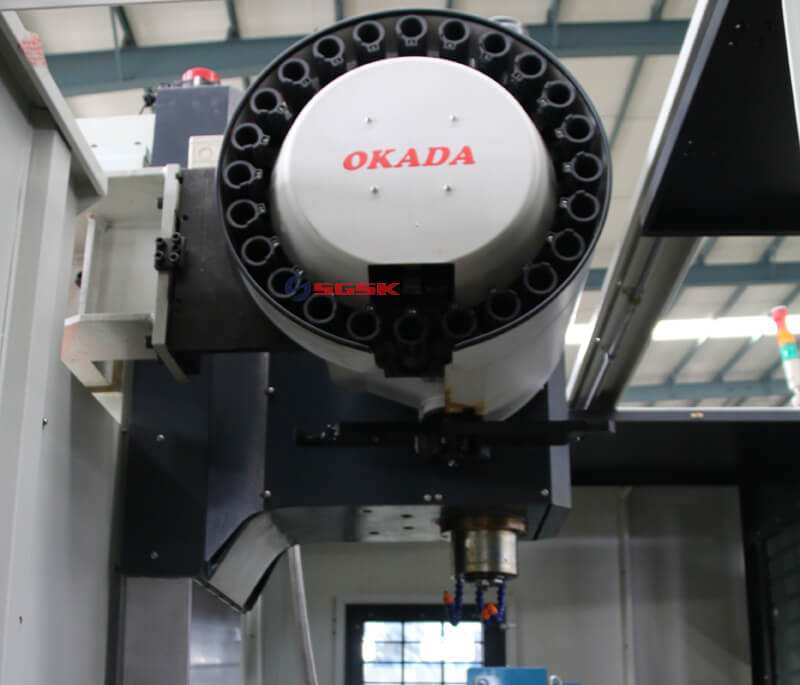

Tool magazine
Arm 24
Max. tool diametermmφ78 (Adjacent)/ φ120(Apart)
Max.tool weightkg8
Machine weightkg5600
Overall dimensionmm2600X2300X2800


Standard configurationOptional configuration


24 Arm Tool Magazine

3 axis linear railway

Automatic lubrication system

Automatic coolant system

Taiwan Spindle


The 4th axis

Spindle oil cooling

Chip conveyor

Oil-water separator

12000rpm spindle unit
