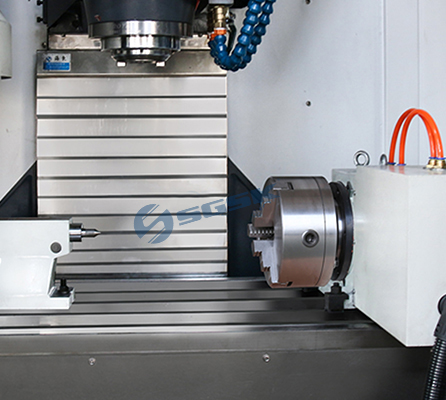

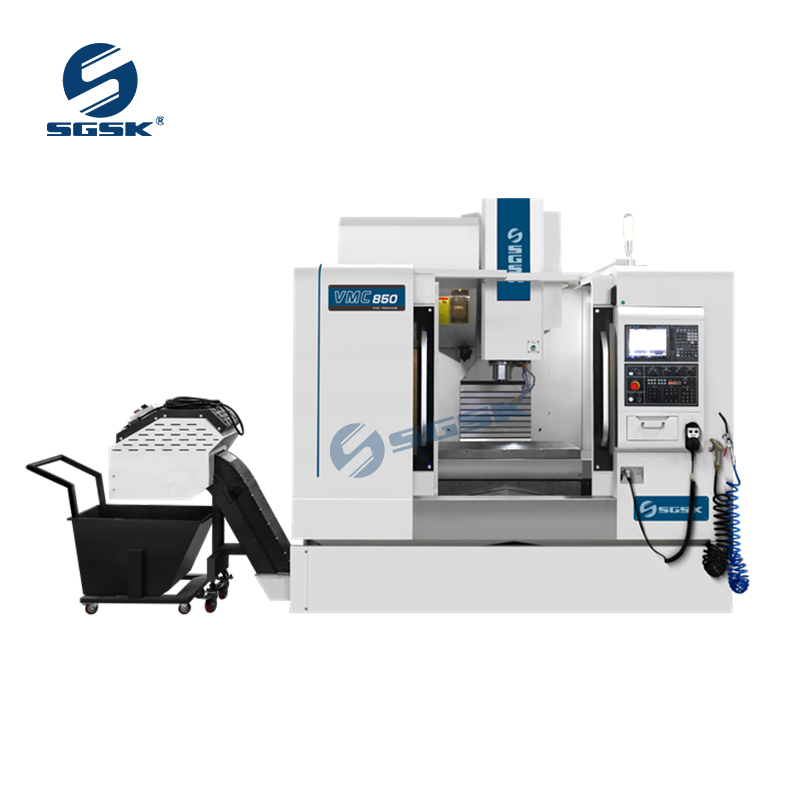

VMC860 Vertical Machining Center 4th axis table

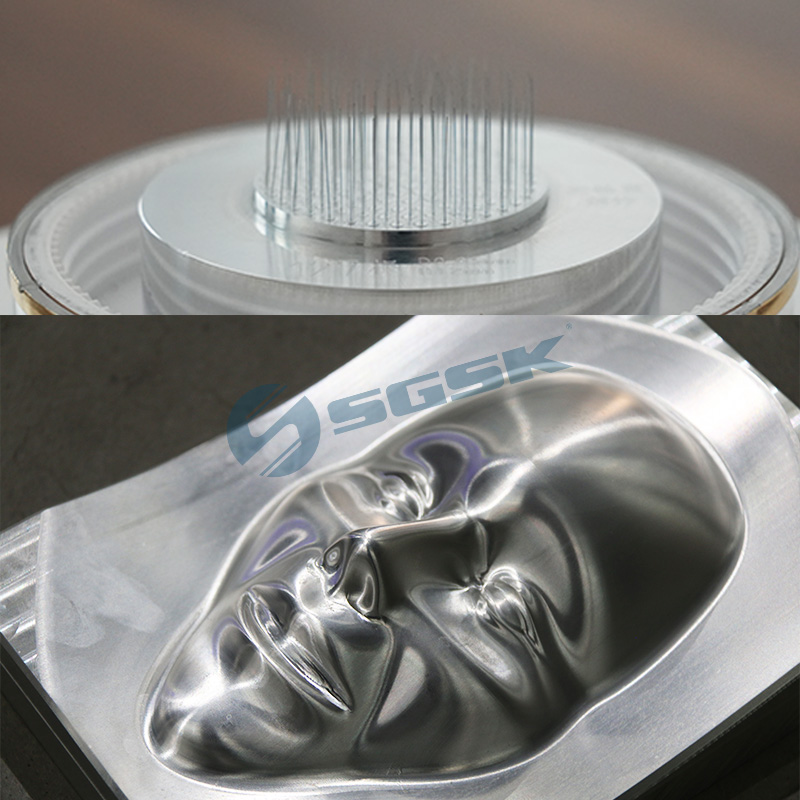

This VMC is suitable for mechanical processing and mold making .

And it can asapt to the processing requirement from rough machining to finish machining .

It can also finish many working procedures like milling ,drilling ,tapping ,boring ,etc.

1.The fuselage and main components are  high strength cast iron, microstructure stability, ensure the stability of machine tool for long-term use.

2.The column at the bottom of A type bridge type structure, combined with the big box base, greatly reduce  the vibration of machine on heavy cutting

3.The pre tension precision ball screw drive

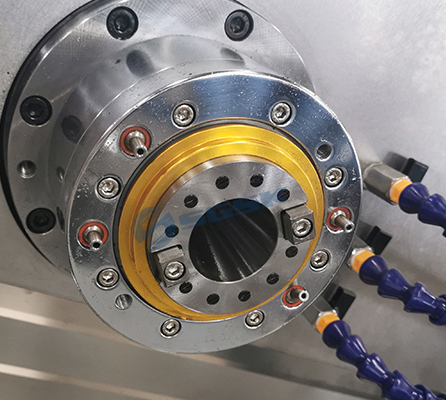

4.The high speed, high precision, high rigidity spindle unit

5.The design of oil-water separation

6.The intermittent automatic lubrication

7.Automatic scraping knife system

The vertical machining center can be applied to many fields such as mechanical processing and mould manufacturing, can adapt from roughing to finishing processing requirements, has the characteristics of high precision, high efficiency, is widely used in aerospace, military industry, mould, automobile, internal combustion engines, textile machinery, chemical machinery processing, oil, electronics and other industries.

Vertical Machining Center Features:

High quality resin sand

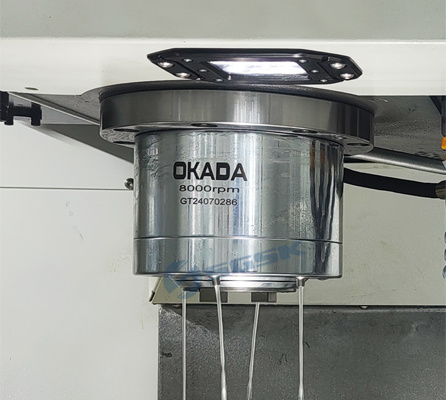

Taiwan spindle

Taiwan pressure cylinder

Automatic lubrication system

Chip conveyor at optional

Vertical Machining Center Application:

This VMC is suitable for mechanical processing and mold making .And it can asapt to the processing requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling ,tapping ,boring ,etc.

Vertical Machining Center Main Technical Parameters:
