Product Model:

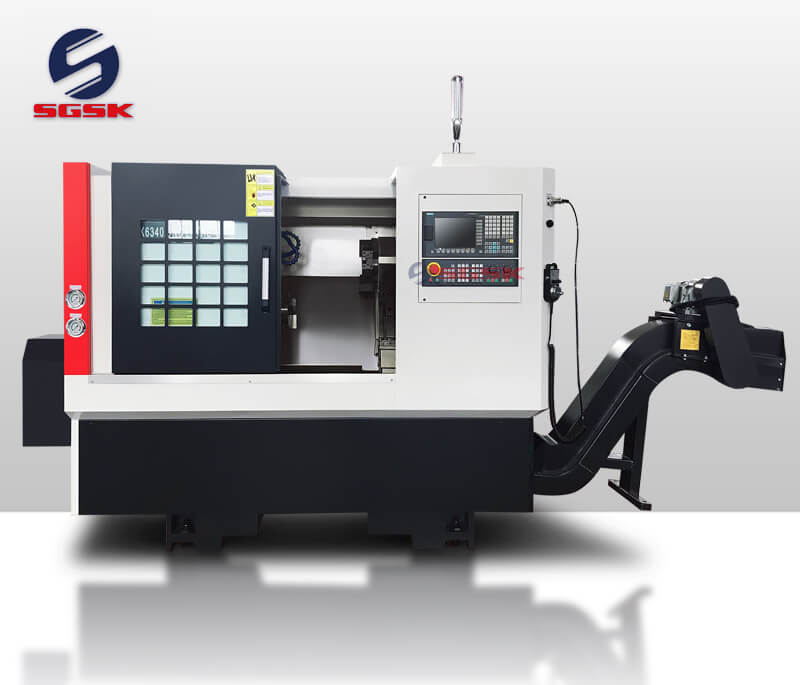

TCK6340 Slant Bed CNC Lathe Machine

Product Main Technical Parameters

Slant Bed CNC Lathe Machine Features:

45 degrees slant bed CNC lathe

Higher accuracy Taiwan linear

Chip conveying capacity is large and convenient, customer could choose chip conveying in the front or in the back

Screw pre-stretching structure

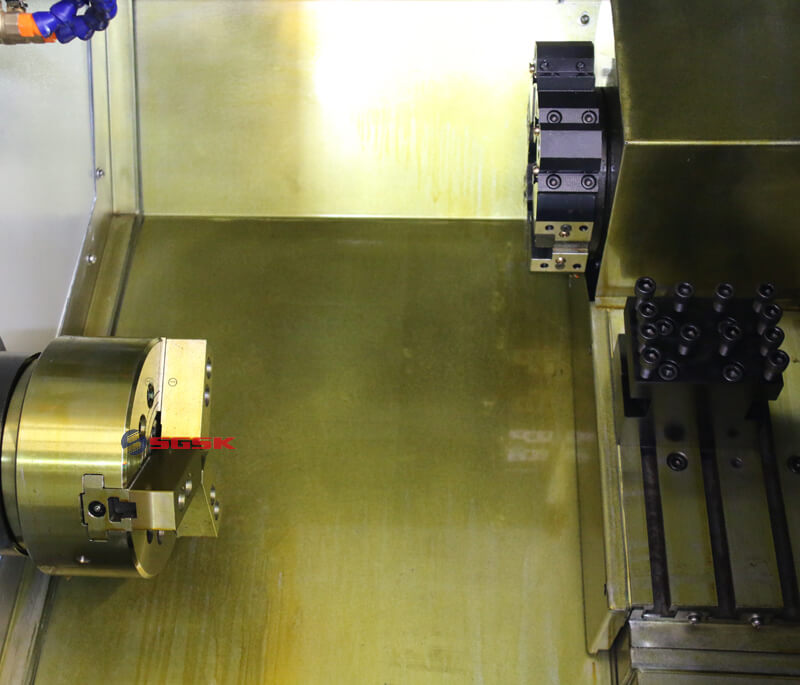

Gang type tool post

TCK6340 Slant Bed CNC Lathe Machine Main Specification:

Swing over bedmm400
Swing over cross slidemm140
Distance between centersmm200
Spindle boremm48
Spindle nose type-A2-5
Spindle speed steps-Stepless
Spindle speed rangerpm3500
Turret/tool post-Gang type
Tool sizemm20 x 20
X axis travelmm400
Z axis travelmm300
X axis rapid traversemm/min18000
Z axis rapid traversemm/min18000
Main spindle motorkw5.5
Guide rail type-Linear rail
Machine weightkg2300
Overall dimensionmm2200x1600x1780
